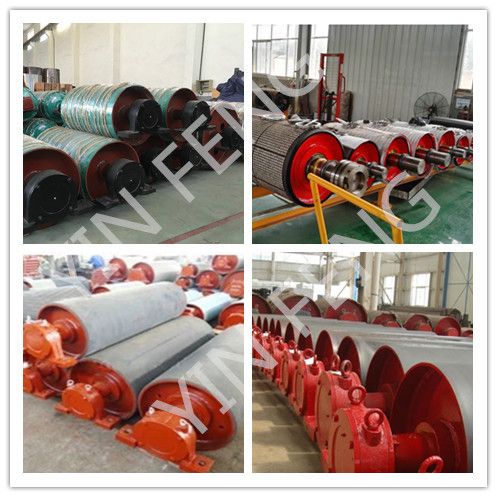

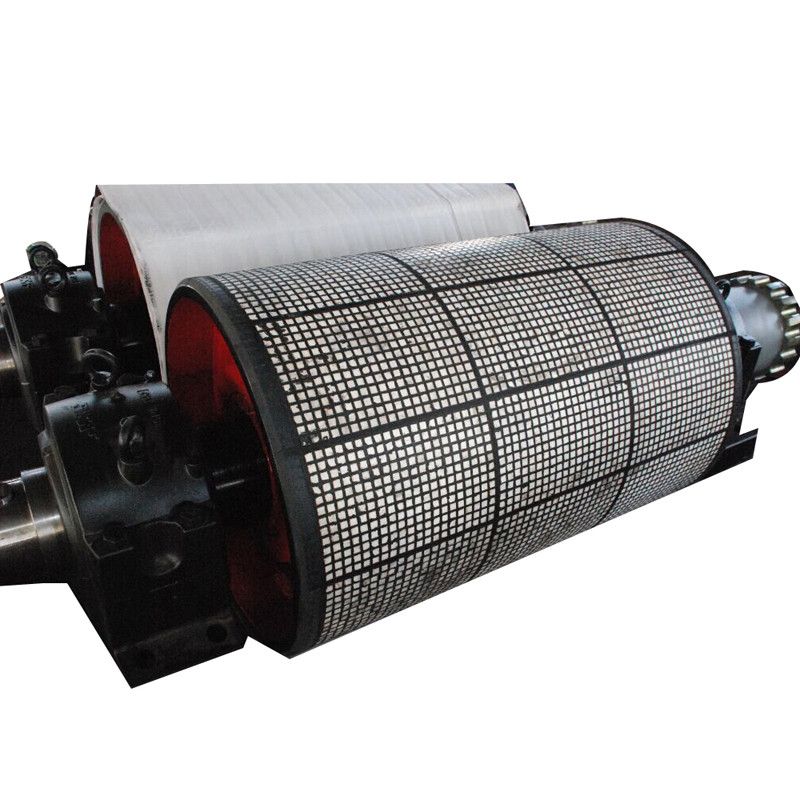

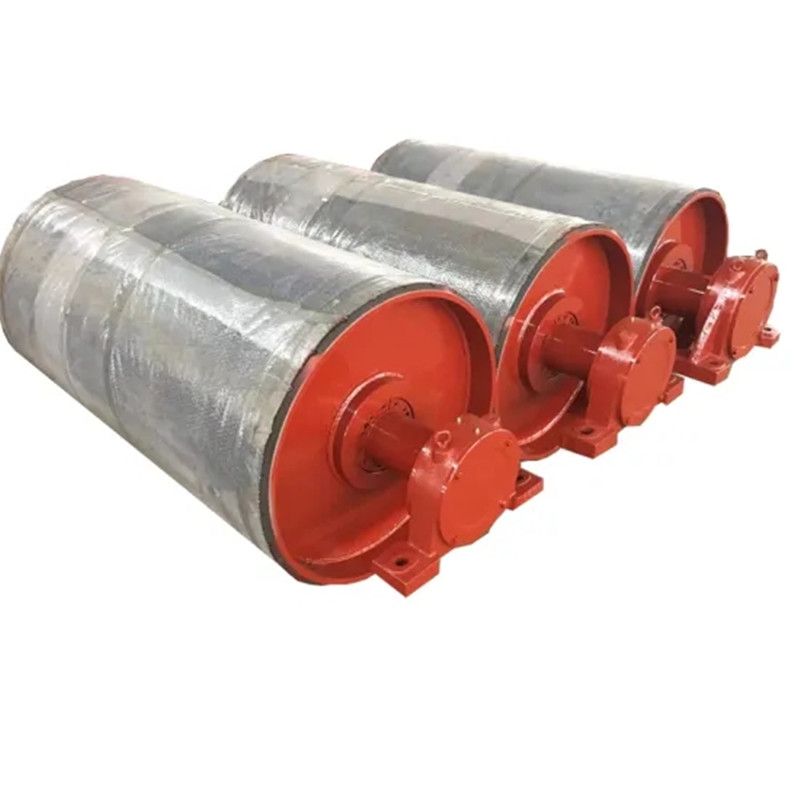

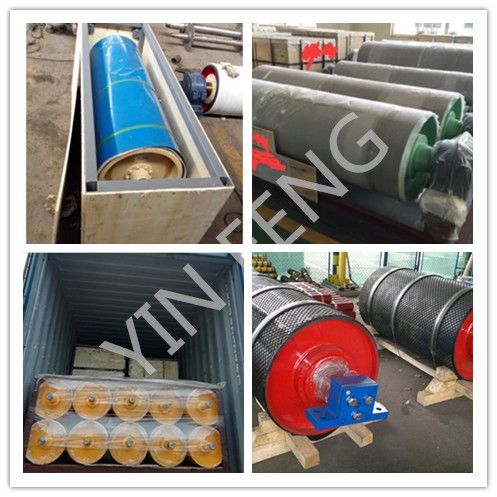

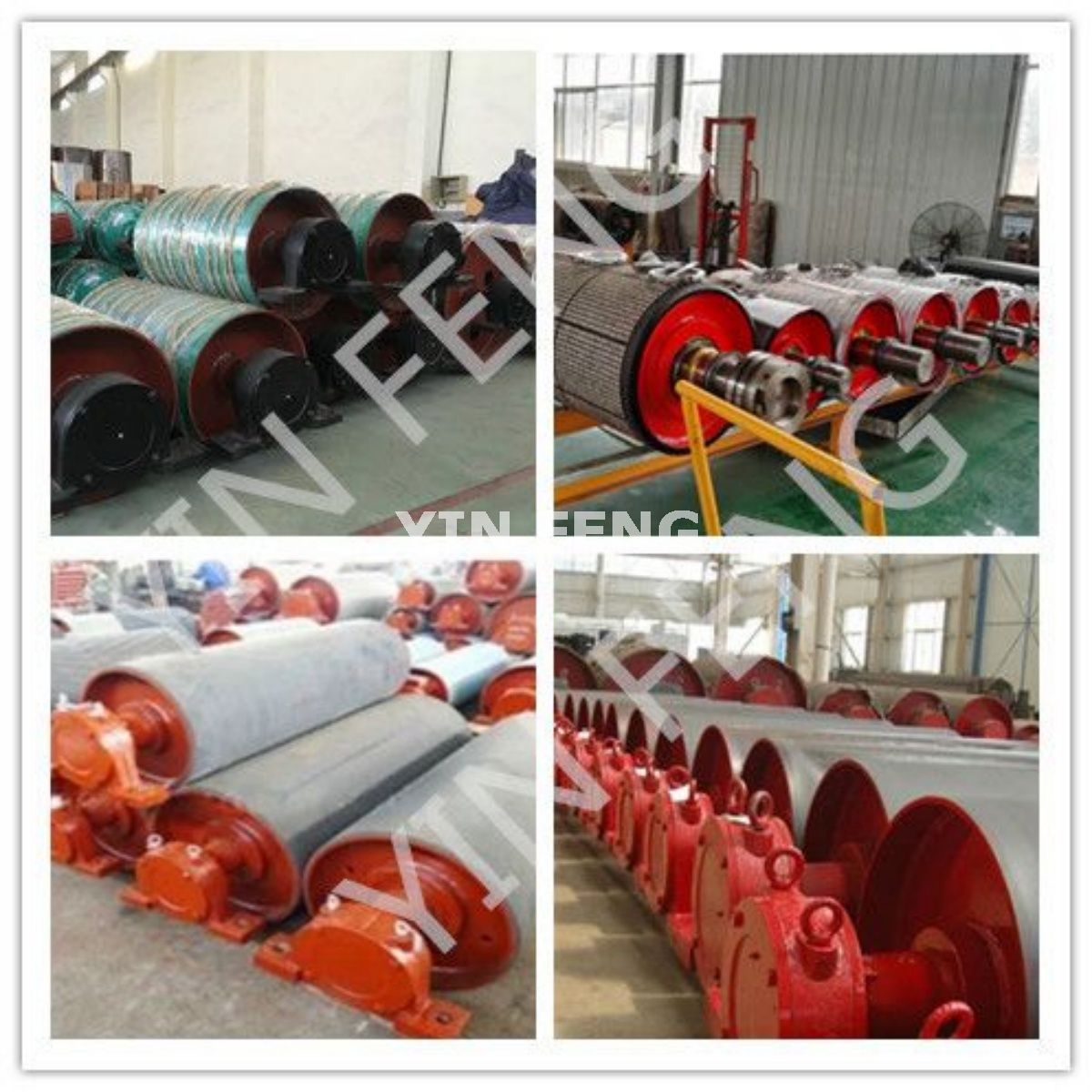

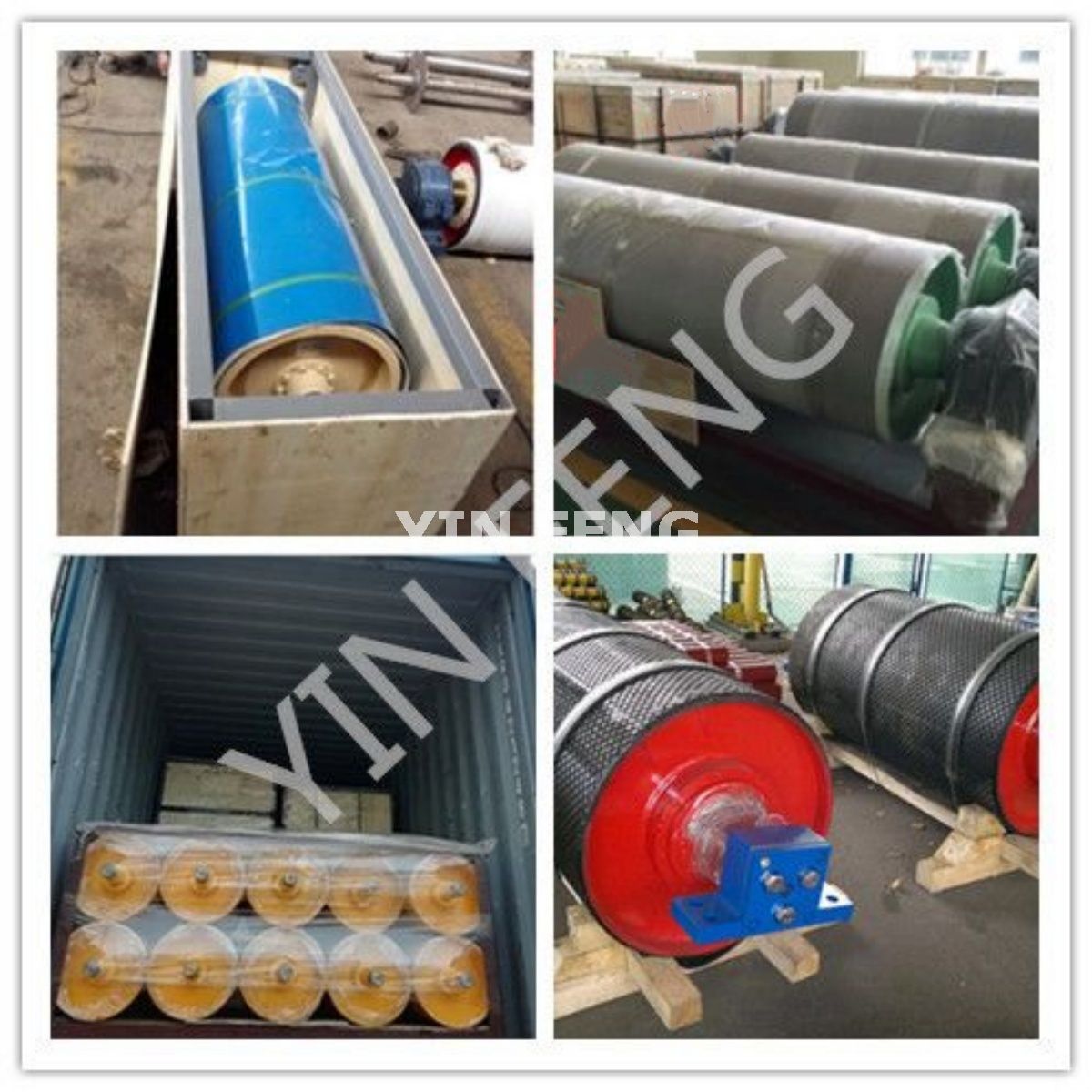

Belt Conveyor Pulley Drum/Belt Conveyor Drum Pulley can be divided into driving pulley (head pulley) and tail pulley(bend pulley), driving pulley is the main part for transmitting the power : smooth surface and rubber surface, and rubber surface can be classified into smooth rubber surface, herringbone rubber surface and diamond rubber surface to meet different technical requirements. Averting pulley can be classified into smooth rubber surface and smooth steel surface.
According to the structure style, the two type pulley can be divided into three light duty, medium duty and heavy duty.
All the pulley adopt integrated bearing housing which is lubricated and filled with grease and has two kinds: iron casting and steel casting, the shaft is made of 45#steel, the shell adopt weld assembly.
Belt Conveyor Pulley Drum/Belt conveyor drum pulley ,based on the above design, the pulley is reasonably structured, convenient type selected, performance reliable, long life time.
Belt Conveyor Pulley Drum/Belt conveyor drum pulley is of stable structure, good performance and long operating life. They can work normally in dusty, wet and muddy environment.
Belt Conveyor Pulley Drum/Belt conveyor drum pulley,include drive pulley, turn pulley, bend pulley, head pulley, tail pulley driving pulleys, it is an important part of belt conveyer and widely used in mining, metallurgy, chemical industry, coal, building materials, electric power, grain, transportation and other sectors.
1. Steady running, reliable quality and reduce maintenance;
2. Less movement longitudinally, rotating smoothly, extends the life span;
3. Various bearing housing and sealing structure are available for the customers choice;
4. Multipass labyrinthine sealing,preventing the mixed dirt and water immersed;
5. Manufacturing by steel pipe specially for of high precision roller, ensuring the strong load, low shaking and less noise.
| Glossy | Rubber surface | |||||||
| B | effect | Allow | D | Bearing | Moment of inertia | weight | Rotational inertia | weight |
| mm | Torque | Joint force | mm | model | ||||
| kN·㎥ | kN | kg·㎥ | kg | kg·㎥ | kg | |||
| 500 | 2.7 | 49 | 500 | 1316 | 5 | 250 | 6 | 264 |
| 650 | 3.5 | 40 | 6.5 | 280 | 7.8 | 298 | ||
| 4.1 | 630 | 16.3 | 324 | 18.5 | 347 | |||
| 6.3 | 59 | 500 | 3520 | 7.8 | 432 | 9.8 | 393 | |
| 7.3 | 80 | 630 | 19.5 | 492 | 18.5 | 451 | ||
| 800 | 4.1 | 40 | 800 | 9.8 | 453 | |||
| 6 | 50 | 630 | 23.8 | 752 | 23.5 | 521 | ||
| 7 | 800 | 25 | 782 | |||||
| 12 | 80 | 630 | 3524 | 28.5 | 844 | 29.5 | 776 | |
| 800 | 58 | 887 | ||||||
| 20 | 100 | 630 | 3528 | 32 | 920 | |||
| 2x16 | 32 | 967 | ||||||
| 20 | 110 | 800 | 66.3 | 1095 | ||||
| 2x16 | 66.3 | 1143 | ||||||
| 32 | 160 | 3532 | 67.5 | 1253 | ||||
| 2x23 | 67.5 | 1287 | ||||||
| 1000 | 6 | 40 | 630 | 3520 | 26.5 | 585 | ||
| 12 | 73 | 630 | 3524 | 38.3 | 857 | |||
| 800 | 78.8 | 964 | ||||||
| 80 | 1000 | 164.8 | 1162 | |||||
| 20 | 110 | 800 | 3528 | 80.3 | 1168 | |||
| 2x16 | 80.3 | 1216 | ||||||
| 20 | 110 | 1000 | 3528 | 166.5 | 1408 | |||
| 2x16 | 166.5 | 1456 | ||||||
| 27 | 160 | 800 | 3532 | 81.8 | 1376 | |||
| 2x22 | 81.8 | 1410 | ||||||
| 27 | 170 | 1000 | 168.3 | 1617 | ||||
1) steel smooth surface conveyor pulley used for low-power, small belt width and dry working condition.
2) rubber smooth surface conveyor pulley;
3) herringbone rubber surface conveyor pulley - coefficient of friction, slip resistance and good drainage;
4) diamond rubber surface lozenge conveyor pulley for bi-directional running conveyor.
1) steady running,
2) reduce maintenance;
3) less movement longitudinally;
4) rotating smoothly,
5) extends the life span
if you want to find details about belt conveyor pulley, welcome to cotact us!
