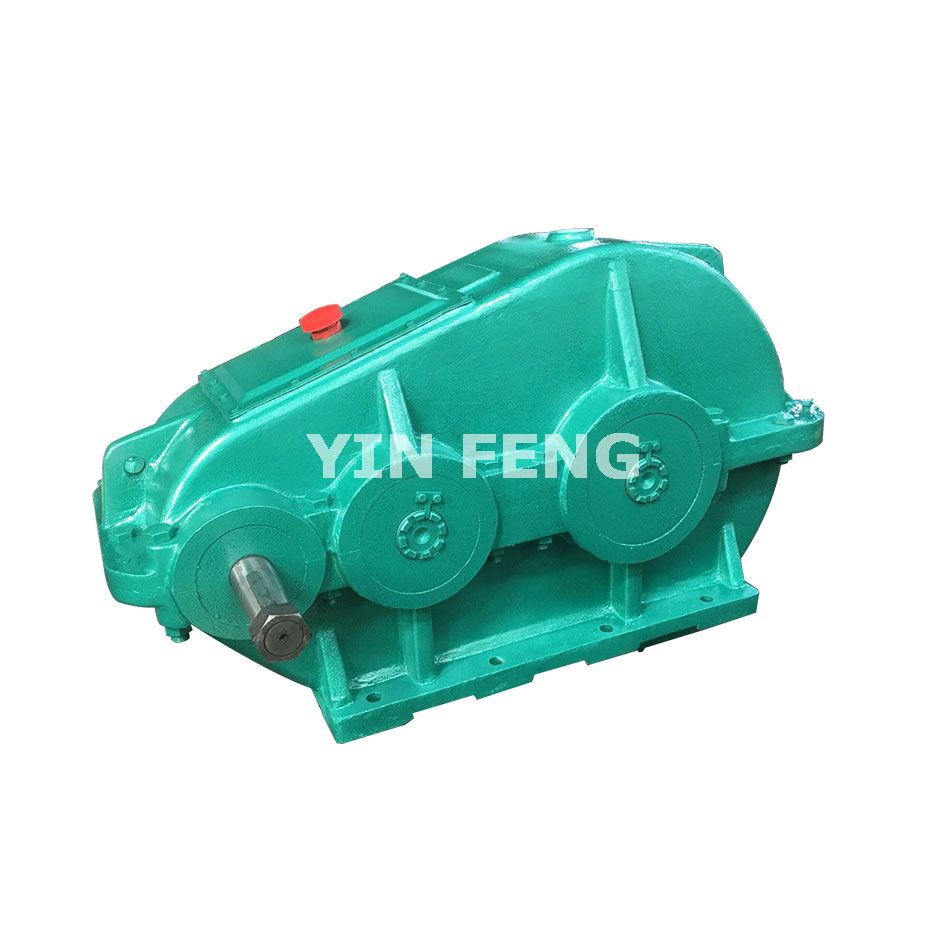

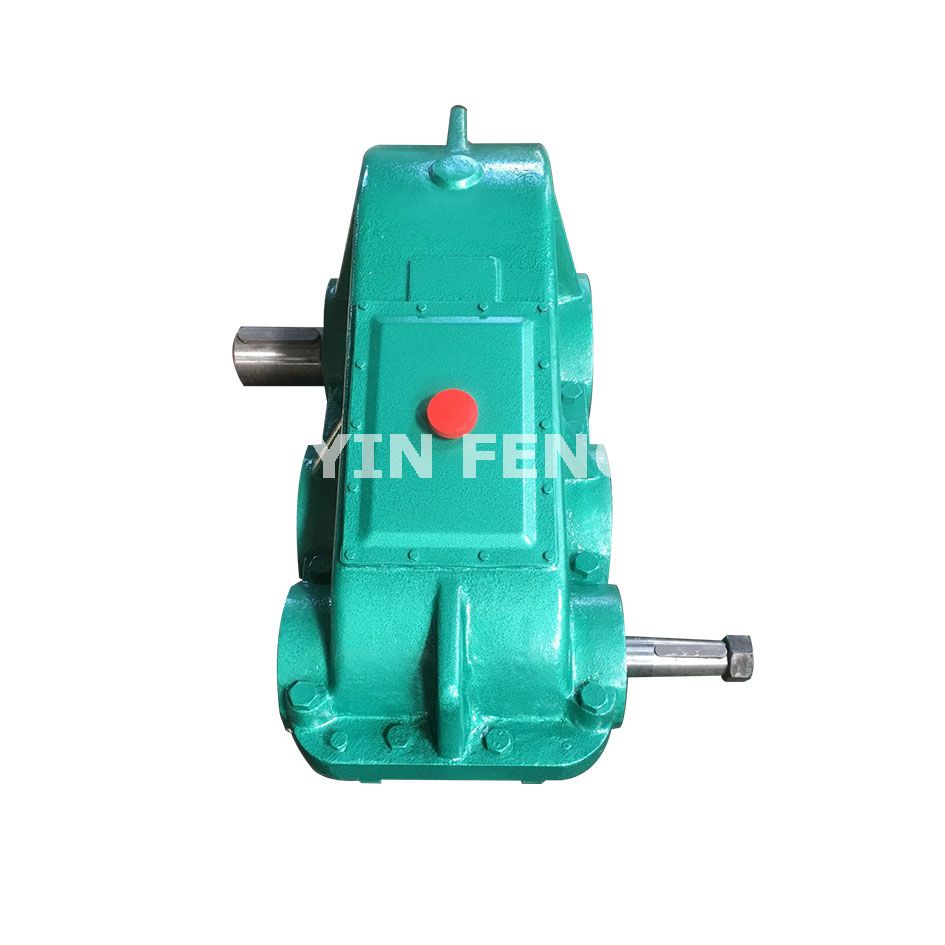

Редуктор/коробка передач ZQ/JZQgear

    industrial gearbox

    ZQ(JZQ)industrial gear reducer (industrial gearbox) as the power equipment of belt conveyorare,is widely used in industrial, metallurgy、mining、lifting、transportation、Cement、construction、chemical、building、materials、light industry、petroleum、printing、dyeing and textile etc.



ZQ(JZQ)industrial gear reducer (industrial gearbox) Description

ZQ(JZQ)gear reducer (gearbox) are widely used in metallurgy、mining、lifting、transportation、Cement、construction、chemical、building、materials、light industry、petroleum、printing、dyeing and textile etc.

industrial gearbox Main Features

1.Gear with high strength and low carbon alloy steel by carburizing quenching, tooth surface hardness of HRC58-62, gear are CNC grinding process, high precision, good contact.

2.Transmission rate is high: single stage is greater than 96.5%, double stage is greater than 93%, grade three is greater than 90%.

3.Stable operation, low noise.

4.Small size, light weight, long service life, high carrying capacity.

5.Easy to be disassembled and easy to install.

ZQ(JZQ)industrial gear reducer (industrial gearbox) Application

1.The ratate speed of the high speed shaft should not be more than 1500r/min

2.Working ambient temperature:-40 °C ~45 °C .

3.Both forward and reverse operation are available.

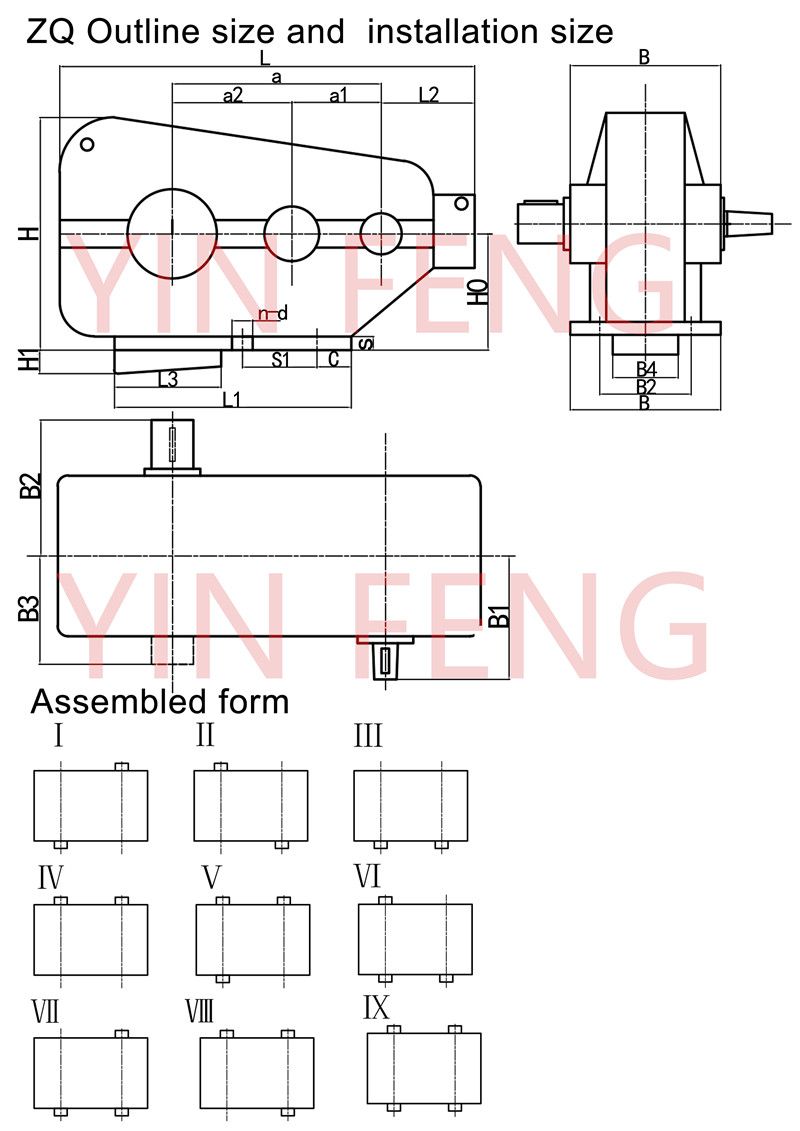

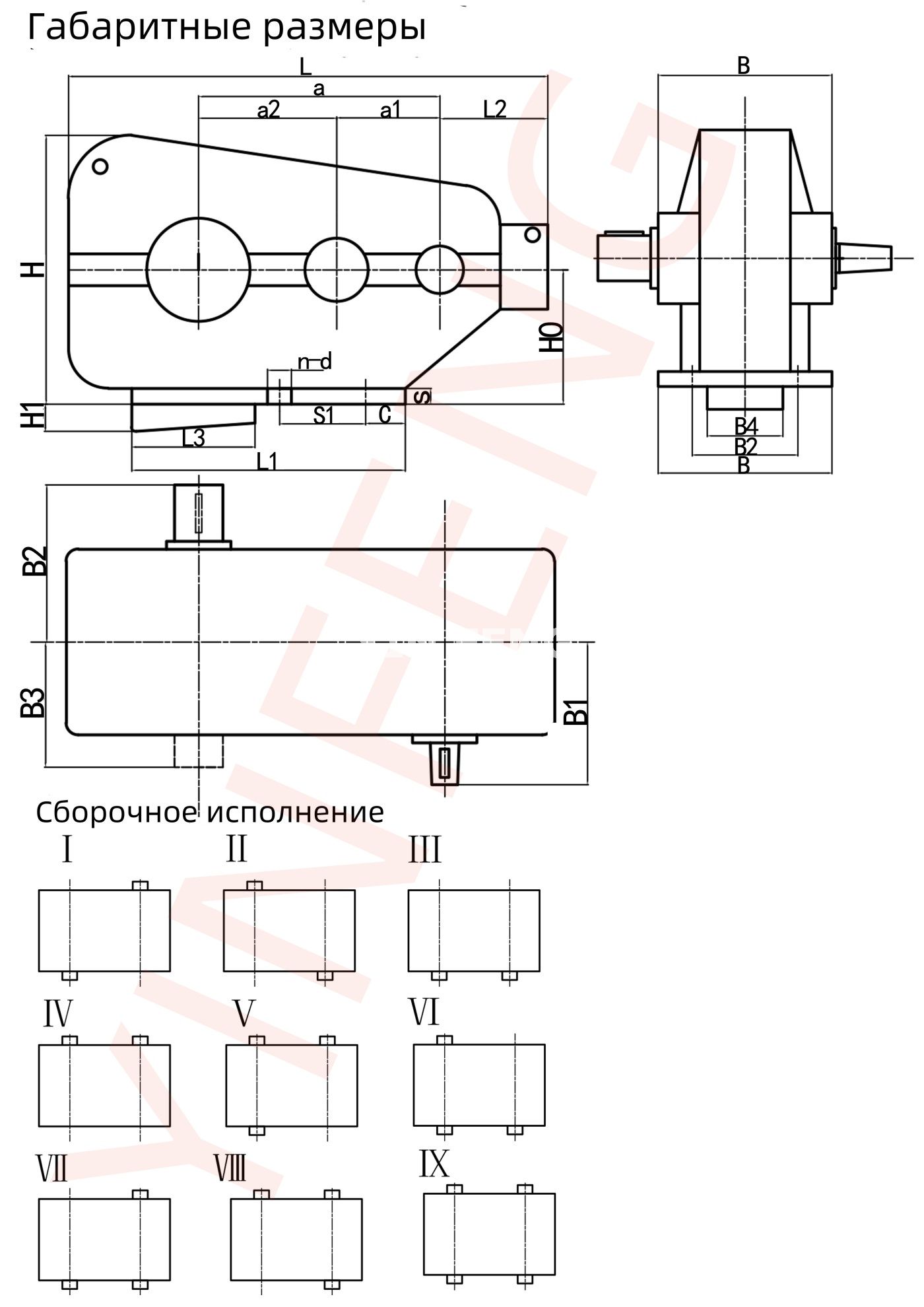

ZQ(JZQ)gear reducer (gearbox) outline size and installation size

industrial gearbox Outline size and installation size

industrial gearbox Form

Model

Center Distance

Center Hight

Max External Dimension

Shaft End Size



L1



L2



L3

a

a1

a2

H0

L

B

H

High Speed

Low Speed

B1

B2

B3













ZQ

250

250

100

150

160-1

540

230

325

200

220

164.5

345

101

350

350

150

200

200-1

730

290

405

260

250/270

214

470

132

400

400

150

200

250-1

826

310

490

270

300

234

490

133

500

500

200

300

300-1.5

986

350

590

330

325/350

270

620

148

650

650

250

400

320-1.5

1278

470

700

430

 430

342

830

183

495

750

750

300

450

320-1.5

1448

510

745

450

450

362

1020

207

620

850

850

350

500

400-1.5

1632

580

875

510

525

403

1100

236

610

1000

1000

400

600

400-1.5

1896

660

965

550

605

507

1350

257

870


Model

H1



Installation Dimension

Max Weight

(kg)

C

C1

Pitch-row

S1

S2













ZQ

(JZQ)

250



60

28

235

190

100

350



100

40

310

250

200

400



110

80

370

270

250

500



130

80

240

310

390

650

95

160

85

215

410

880

750

130

155

55

275

450

1100

850

105

155

75

300

520

1500

1000

200

200

100

350

590

2230

Notes:The different between JZQ and ZQ is the keyway of output shaft ,other sizes are the same.


Form2

Model


250

350

400

500

650

750

850

1000

Key Width

JZQ

18(7)

18(7)

28(10)

28(10)

36 (12)

36(12)

36(12)

40(13)

Keyway Depth

ZQ

16(6)

16(6)

24(9)

24(9)

32(11)

32(11)

36(12)

40(13)


ZQ(JZQ) industrial Gearbox(reducer) Transmission Ratio

Form3

Model

Transmission Ratio

ZQ(JZQ)

250-1000

48.57

40.17

31.5

23.34

20.49

15.75

12.64

10.35

8.23


ZQ(JZQ)industrial gear reducer (gearbox) Features

1.High modularization design: many equip with various motor or other power input conveniently.

Same machine type may equip with various power motor. It is easy to realize the combination and

 junction between every machine type.

2.Transmission ratio: fine division, wide scope. The combined machine type may form very large transmission ratio, i.e. output very low rotary speed.

3.Form of installation: the position to be installed is not limited.

4.high strength, compact: the box body is made of high strength cast iron. Gear and gear shaft

adapts the gas carbonization, quenching and fine grinding process, therefore the bearing capacity

of unit volume is high.

5.Long life: Under the condition of correct type chosen (including choosing suitable operation

parameters) normal operation and maintenance, the life of main parts of speed reducer (except

wearing parts) should not be less than 20000 hours. The wearing parts include lubricating oil, oil

 seal and bearing.

6.Low noise: because main parts of speed reducer are processed, assembled and tested critically,

therefore the noise of speed reducer is low;

7.Parallel axis -bevel wheel speed-down motor.

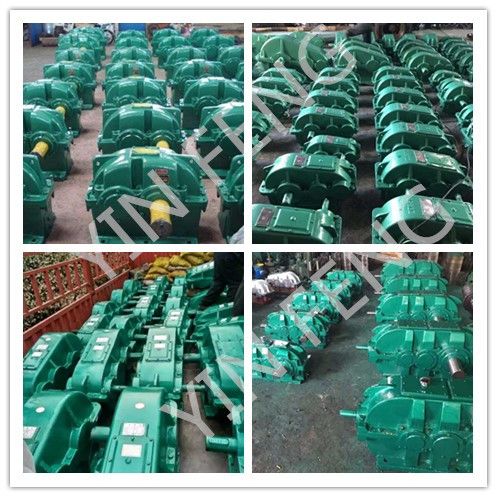

ZQ(JZQ)industrial gear reducer (gearbox) Display

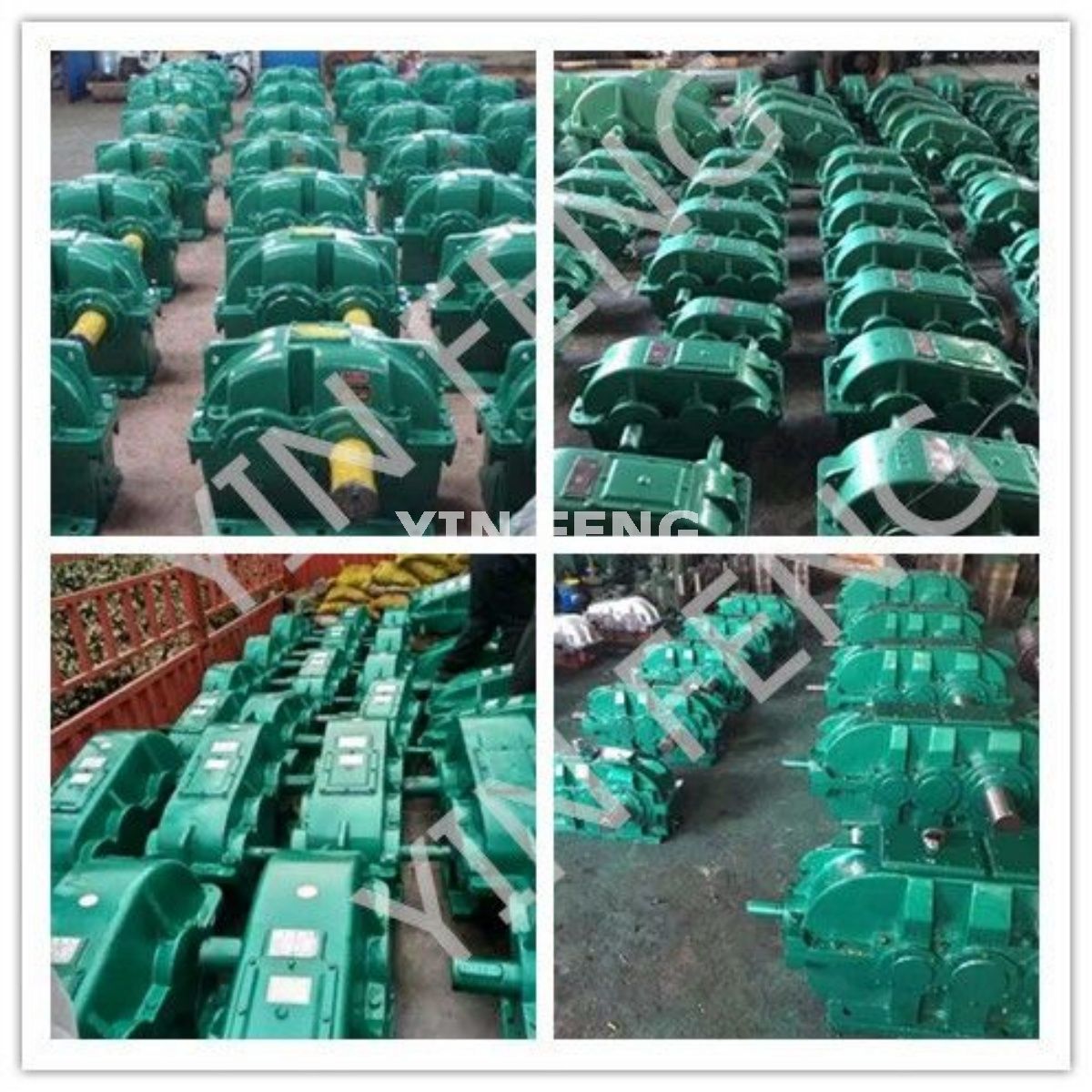

ZQ(JZQ)industrial gear reducer (gearbox) Display

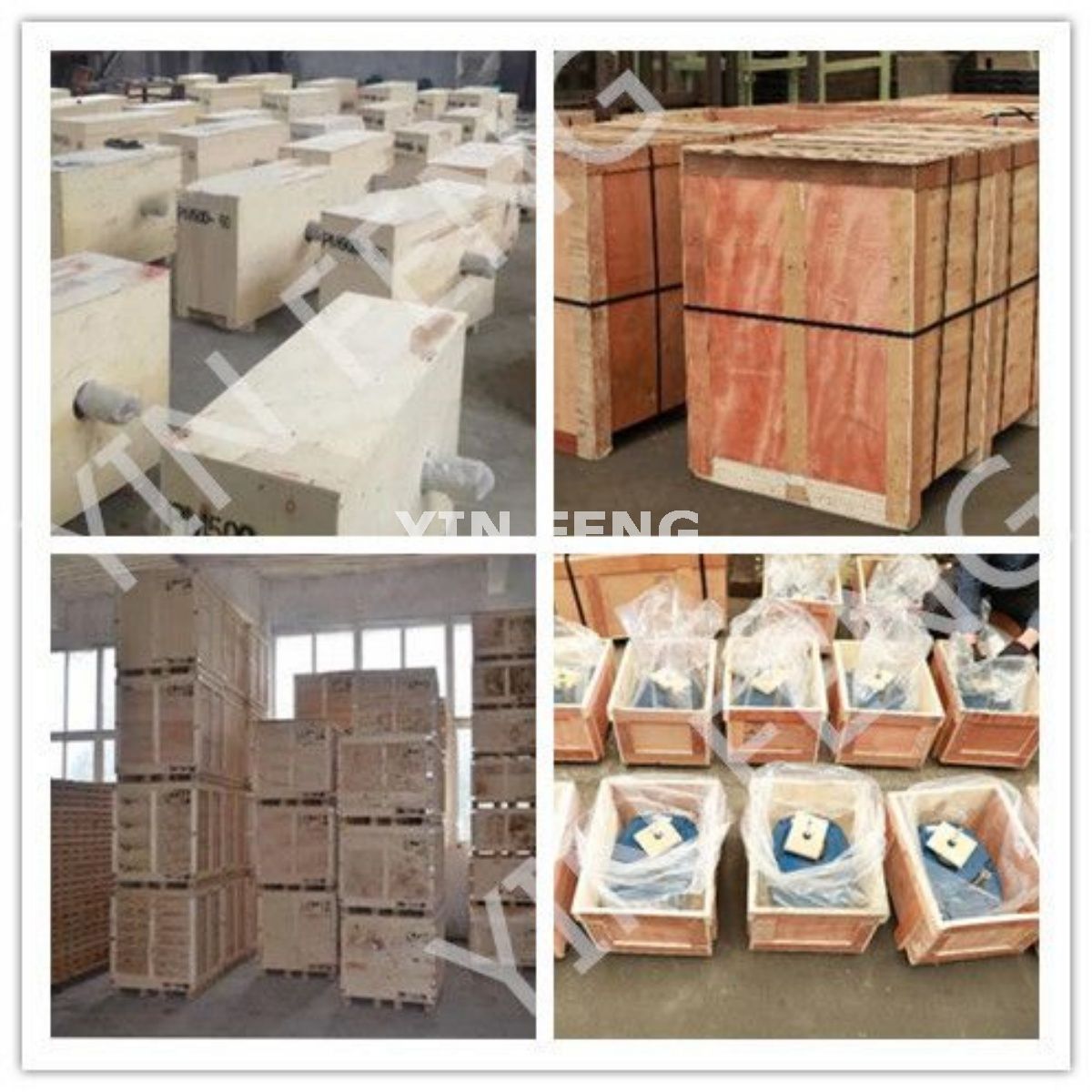

ZQ(JZQ)gear reducer (gearbox) Packaging

ZQ(JZQ)gear reducer (gearbox) Packaging
