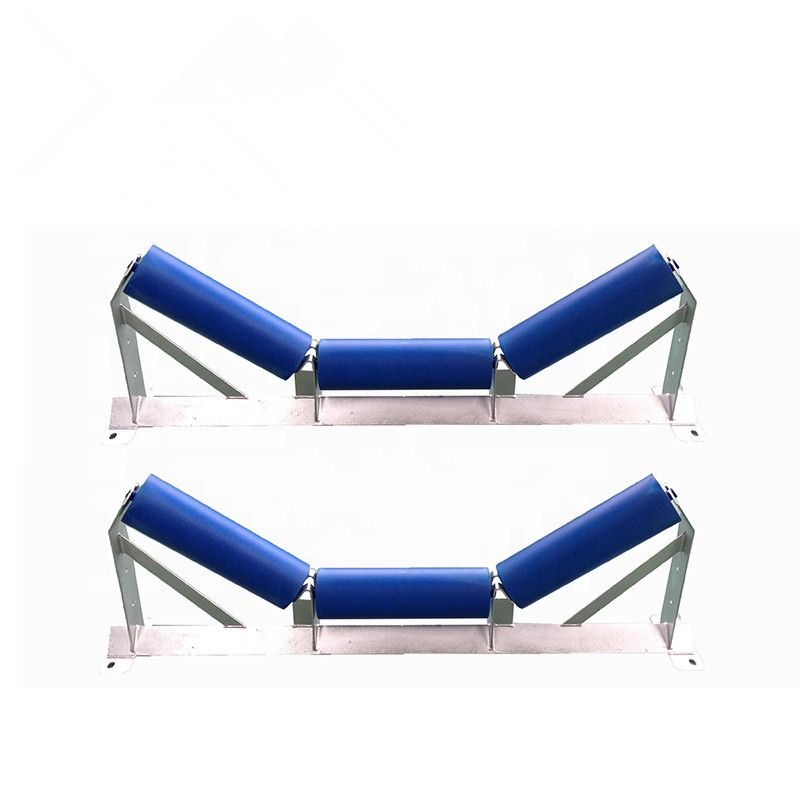

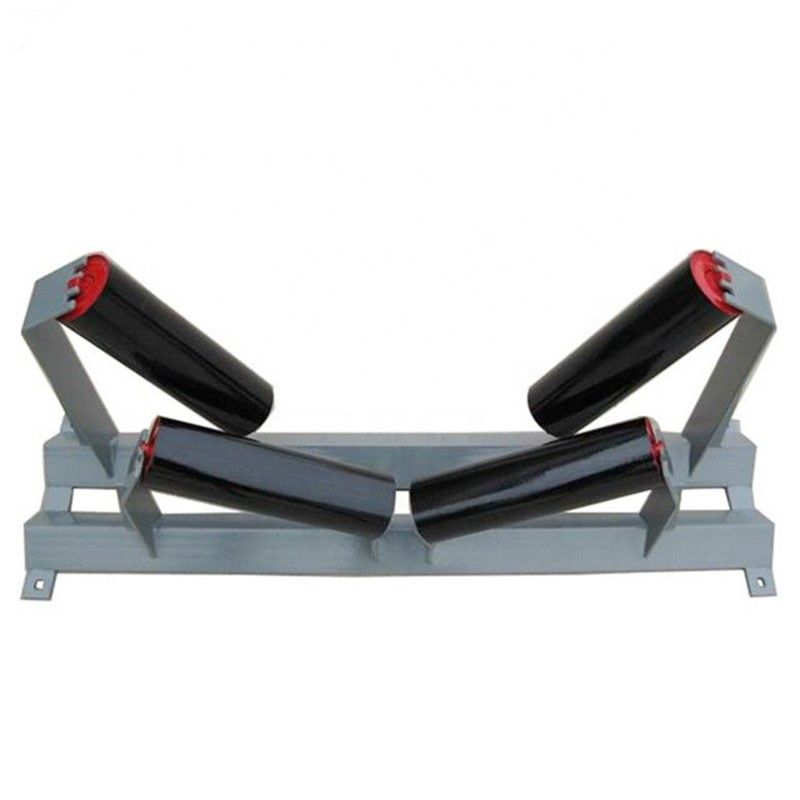

Impact Roller (Idler)

      The impact roller (idler) set has physical and chemical properties which are high wear resistance, low friction coefficient, not easy to wear leather strap. It also has the fine self lubrication and not easy to card to die in the bad conditions, antistatic, flame retardant, aging resistance, corrosion resistance. It can withstand repeated impact, vibration, mechanical performance is excellent, light weight, easy installation, no maintenance, low noise(3-7DB), smooth operation. The temperature of using keep in -40°Cto-85°C.

      The impact roller (idler) is widely used in the original dock transporting places where dust is bigger and the environment has high corrosive, such as mining,


Impact Roller ( Idler) Product Description



Application

coal,mine,quarry,cement,harbor,steel,power,crusher,screen industry

Shell Material

Carbon steel, stainless steel,nylon,plastic,ceramic,hdpe, uhmw-pe

Roller Type

Carrying,Impact,Return,Friction,Tapered,Guide,Spiral,Comb and so on

Surface Treatment

carbon steel, Rubber ring, nylon etc

Usage

Used in coal,mine,steel,cement,harbor,crusher heavy industry

Advantage

1. Low vibration, low noise

2.Reduced power consumption (to start and run the conveyor)

3.Min 30,000 hours standard life time

4. effectively prevent impurities, water, air, the erosion of the inner roller.

5. widely used in the outdoor dust is bigger, high corrosive environment, such as mines, power plants,

steel mills, stones factory, cement, coal washing, salt factories, soda,

fertilizer plants, docks ect.

6. Reduce stress both avoid scattered material on the edge of the

 conveyor belt

7. avoiding to correct the action of running deviation of belt conveyor

standard set of tests

Load capacity tests

Wear tests

Sealing against dust and water tests

Start and run resistance tests







Product Name

Belt conveyor  impact roller set



Application

coal,mine,quarry,cement,harbor,steel,power,crusher,screen industry



Bearing Specification

6204/6205/6206/6305/6306/6307/6308/6309/6310



Shell Material

Carbon steel, stainless steel,nylon,plastic,ceramic,hdpe, uhmw-pe



Roller Type

Carrying,Impact,Return,Friction,Tapered,Guide,Spiral,Comb and so on



Surface Treatment

carbon steel, Rubber ring, nylon etc



Usage

Used in coal,mine,steel,cement,harbor,crusher heavy industry



Sample

 We can send for you according to your requirement.



Impact Roller ( Idler) Advantage



1. Low vibration, low noise



2.Reduced power consumption (to start and run the conveyor)



3.Min 30,000 hours standard life time



4. effectively prevent impurities, water, air, the erosion of the inner roller.



5. widely used in the outdoor dust is bigger, high corrosive environment, such as mines, power plants,



steel mills, stones factory, cement, coal washing, salt factories, soda, fertilizer plants, docks ect.



6. Reduce stress both avoid scattered material on the edge of the conveyor belt



7. avoiding to correct the action of running deviation of belt conveyor



8.ISO9001:2000



Impact Roller ( Idler) Set Standard Set of Tests



Load capacity tests



Wear tests



Sealing against dust and water tests



Start and run resistance tests



Package



in plywood package



Delivery



within 20 days



Payment Terms



TT payment/ LC



Supply Ability:



100000pcs /month





Impact Roller ( Idler)  Components



1. Roller Shell (Steel Tube)



We will use tube speciall for roller,compared with ordinary steel tube, in the following aspects, it has great advantages which can make the roller have minimum radial play eccentricity





Items



Ordinary steel tube



Tube specially for roller



Outside diameter tolerance



± 0.8mm



± 0.3mm



Wall thickness tolerance



± 0.38mm



± 0.1mm



Bending degree



≤ 1.5mm/m



≤ 0.5mm/m



Ovality



≤ 0.6



≤ 0.15



Height of inner bur



+0.5~ -0.2



0



Shaft



We use high precision cold-drawn steel which has high brightness and little tolerance



Bearing



1.We use deep groove ball bearing with big clearance, it’s C3,C4. And this clearance can make rollers revolve flexibly.



2. Bearing type is 2RZ and 2RS with oil seal which have advantage in dust proof.



3. Material: Bearing Steel



4.Specification: 6204/6205/6206/6305/6306/6307/6308/6309/6310



Bearing Housing and Seals



1. Type: DTII, TD75, TK contact and labyrinth seals, TK labyrinth, TKII



2. Bearing Housing material: 08 F with high tensile strength,high hardness,good toughness and easy to be welded and punched not easy to crack



3. For seals, the material we can provide has ABS resin, Nylon, Hdpe, Polyurethane, polyformaldehyde and so on



And it has great advantage in dust proof, water proof which can be used in harsh working conditions
