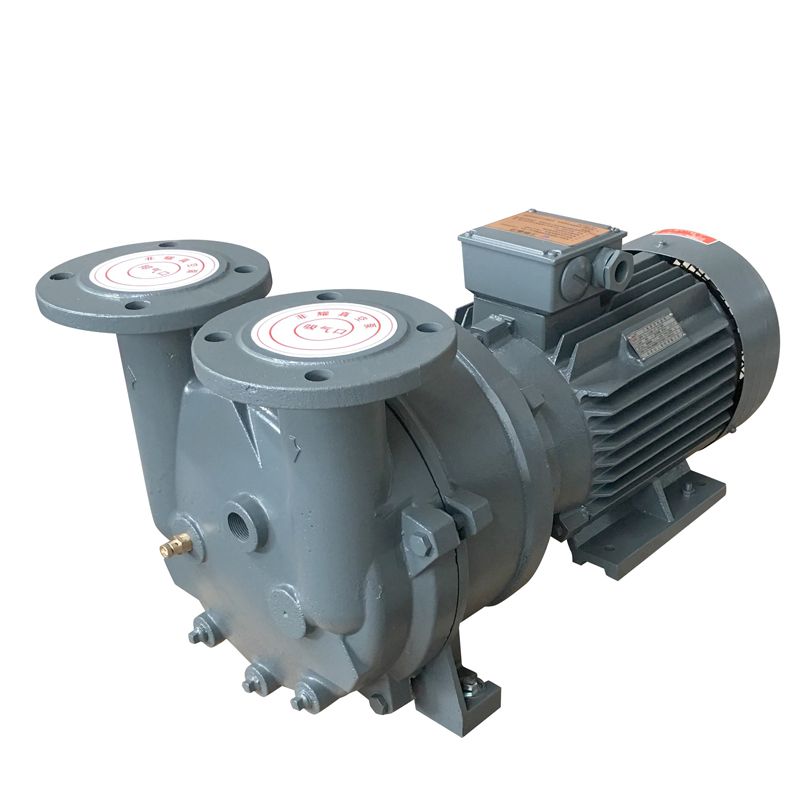

2BV Series Water Ring Vacuum Pump

    2BV series water ring vacuum pump has small volume, compact structure, directly connected motor, while installation, put it in horizontal plane, no need chassis.

2BV series water ring vacuum pump product profile

2BV series water ring vacuum pump for air and water vapour pressure to breathe, 33mbar absolute pressure (97%), vacuum pump suction pressure when in 80mbar below the condition, long-term work connected with protecting tube cavitation erosion of pump injector, i.e., protecting atmosphere, inspiratory pressure can reach 10mbar, injector pump can be directly mounted in a compressor, the pressure, to 0.26 MPa (maximum absolute pressure).



2BV series water ring vacuum pump as a new generation energy-saving products, and the excellent performance and numerous advantages will be fully replace with same properties of SK, 2SK series water ring vacuum pumps and W, WY, WL series reciprocating vacuum pump.

Mechanical seal uses imported products, Seals can use viton or PTFE.


2BV series water ring vacuum pump  performance parameters


Model

Power (kw)

Max Vacuum

Capacity (m³/min)

Weight (kg)

2BV2 060

0.81

33hpa

0.45

31

2BV2 061

1.45


0.86

35

2BV2 070

2.35


1.33

56

2BV2 071

3.85


1.83

65

2BV5 110

4


2.75

103

2BV5 111

5.5


3.83

117

2BV5 121

7.5


4.66

149

2BV5 131

11


6.66

205

2BV5 161

15


8.33

331

2BV6 110

4


2.75

153

2BV6 111

5.5


3.83

208

2BV6 121

7.5


4.66

240

2BV6 131

11


6.66

320

2BV6 161

15


8.33

446

2BV Series Water Ring Vacuum Pumps

2BV Series Water Ring Vacuum Pumps


2BV series water ring vacuum pump Display


2BV Series Water Ring Vacuum Pump



2BV series water ring vacuum pump Packaging


2BV Series Water Ring Vacuum Pump
