DY1 (JYD)Type Oil-cooled Motorized Pulley (Motorized Drum/Drum Motor)

    DY1 (JYD)type oil-cooled motorized pulley (motorized drum/drum motor) is the internal driving device for the supportive use of various fixed belt conveyor.

DY1 (JYD)type oil-cooled motorized pulley (motorized drum/drum motor

Product Introduction

DY1 (JYD)type oil-cooled motorized pulley (motorized drum/drum motor) is the internal driving device for the supportive use of various fixed belt conveyor; compared with external driving device, it carries the characteristics of compact structure, small spatial area, convenient use an maintenance, safe and reliable operation and better leakproofness. It is suitable for the humid and muddy workplace with high dust concentration to meet the requirements such as reverse stop and encapsulation.

DY1 (JYD)type oil-cooled motorized pulley (motorized drum/drum motor)

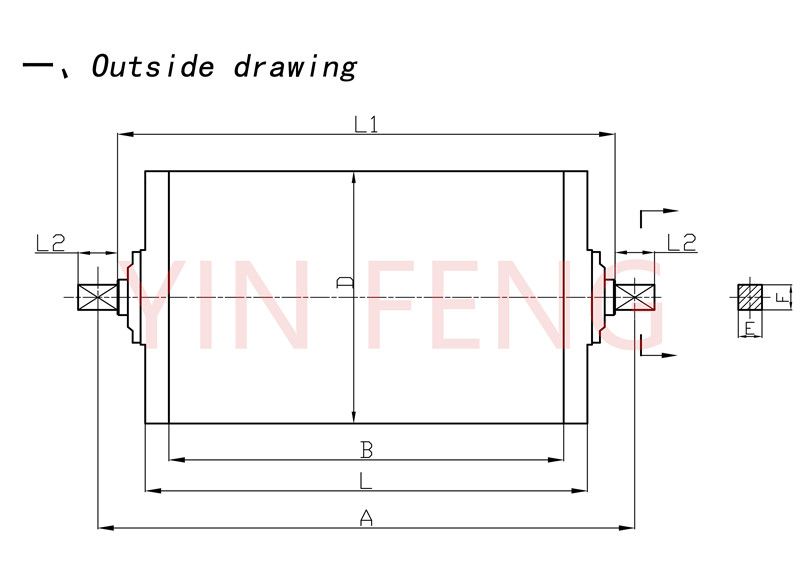

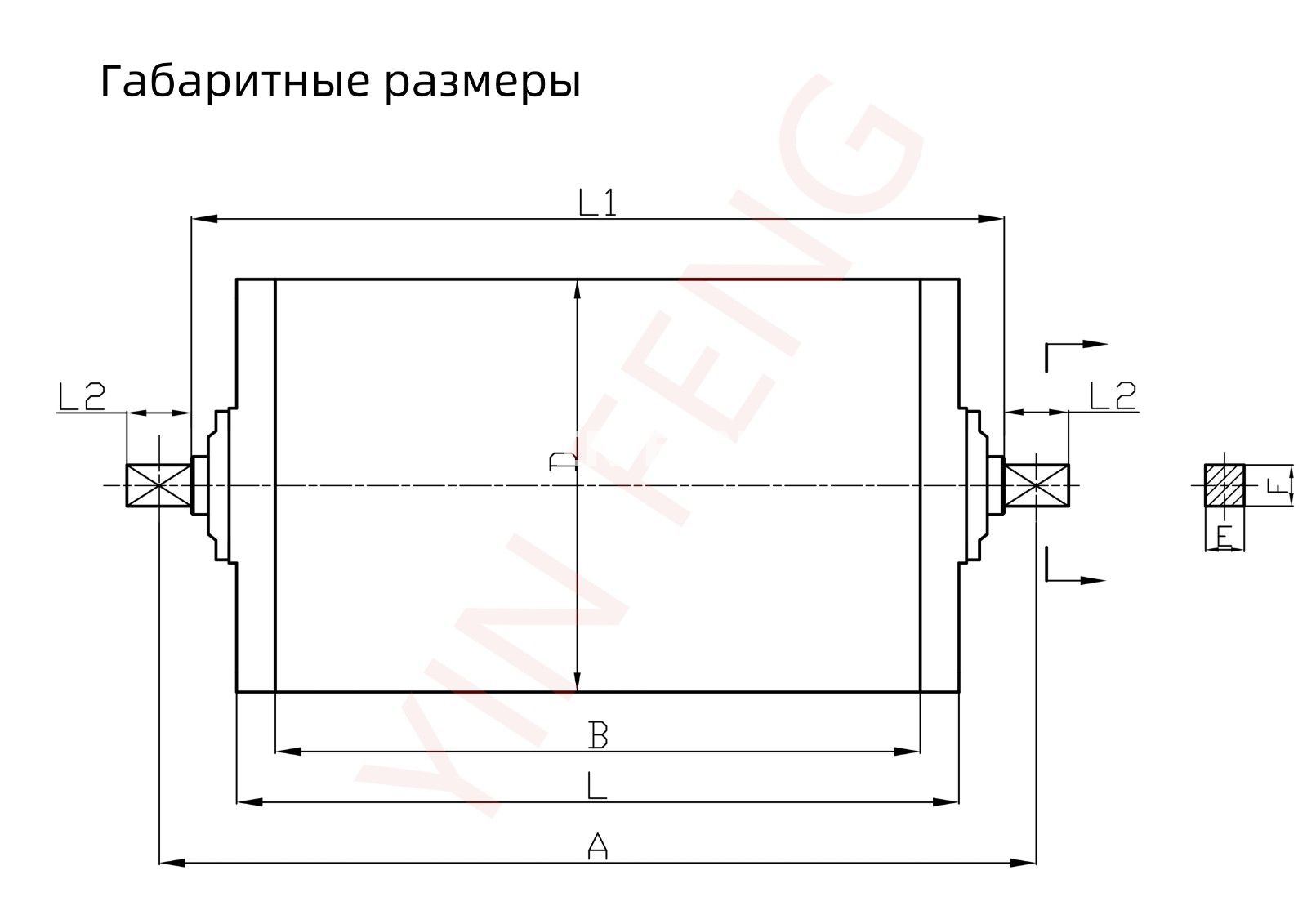

Outside Drawing

、DY1 (JYD)Type Oil-cooled Motorized Pulleys(Motorized Drum)

DY1 (JYD)type oil-cooled motorized pulley (motorized drum/drum motor)

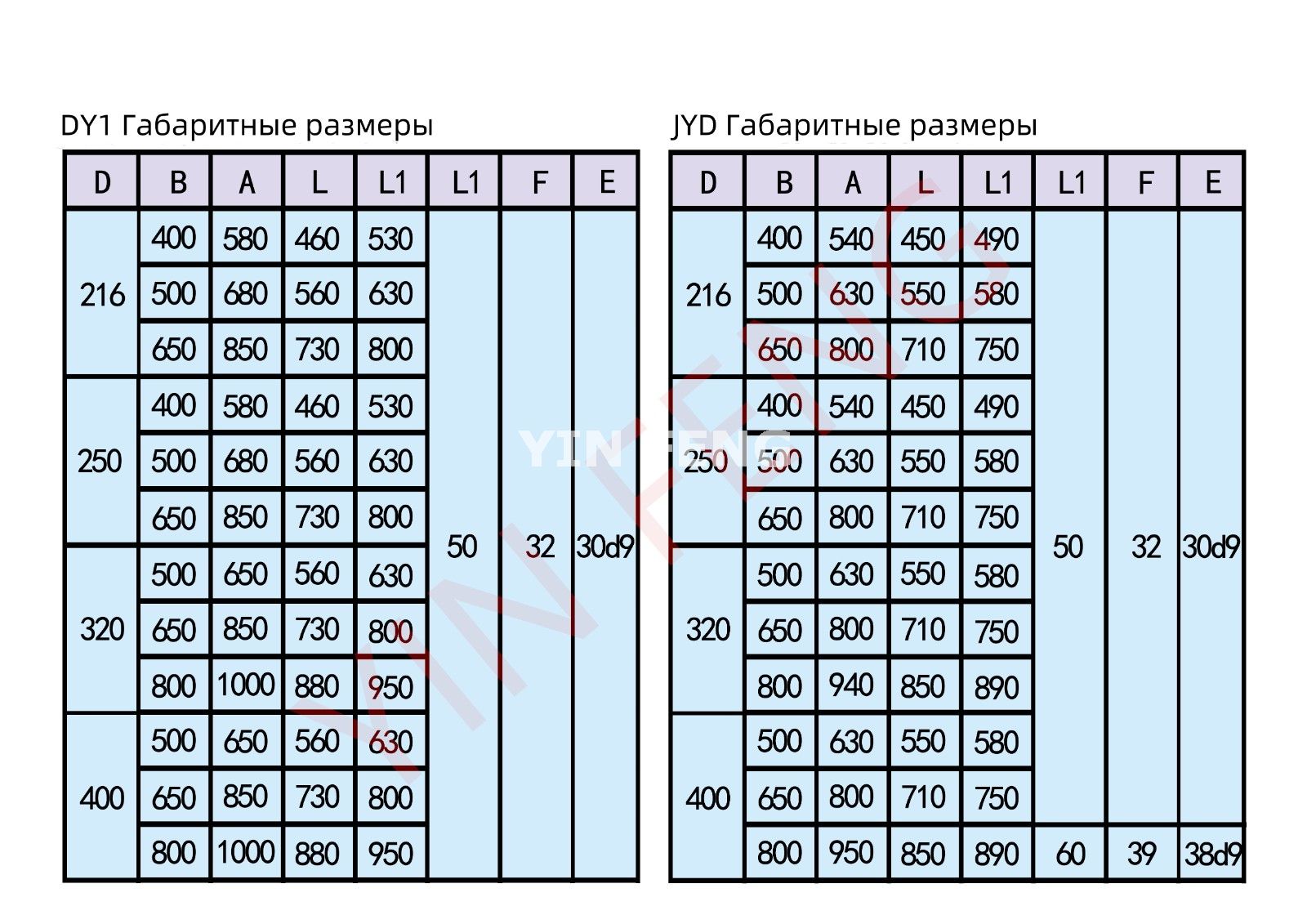

 DY1 External Dimension

D

B

A

L

L1

L2

F

E



216

400

580

460

530













50













32













30d9

500

680

560

630

650

850

730

800



250

400

580

460

530

500

680

560

630

650

850

730

800



320

500

680

560

630

650

850

730

800

800

1000

880

950



400

500

680

560

630

650

850

730

800

800

1000

880

950


  JYD External Dimension

D

B

A

L

L1

L2

F

E



216

400

540

450

490













50













32













30d9

500

630

550

580

650

800

710

750



250

400

540

450

490

500

630

550

580

650

800

710

750



320

500

630

550

580

650

800

710

750

800

940

850

890



400

500

630

550

580

650

800

710

750

800

950

850

890

60

39

38d9

Application  of DY1 (JYD)type oil-cooled motorized pulley (motorized drum/drum motor)


1, can be used instead of the widespread use of a motor reducer type of external drive means for constituting the belt conveyor can transport coal, ore, sand, cement, flour and other bulk materials, can also transport sack, and equipment into the items .

2, simple and compact structure, small footprint area.

3, sealed for dust concentration, wet and muddy in the workplace.

4, easy maintenance, safe and reliable operation and long life.

5, energy consumption, and easy to implement centralized control.

6, can meet a variety of backstop, brake, plastic packets and other needs.

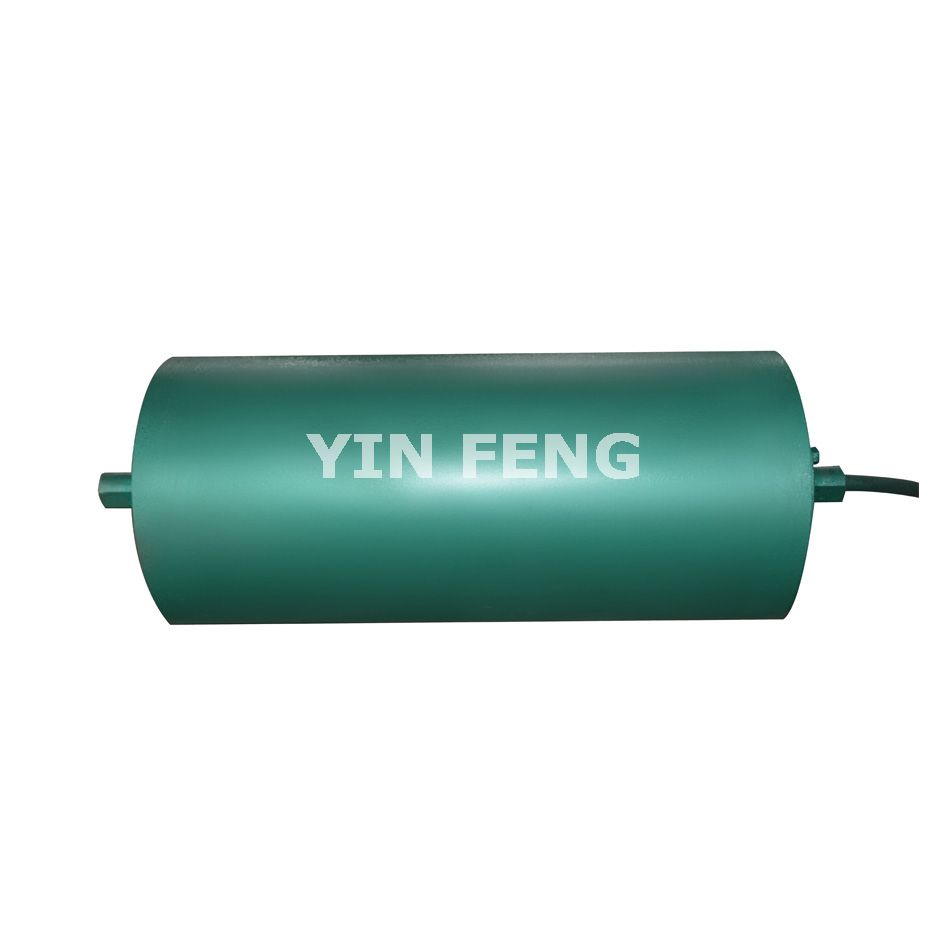

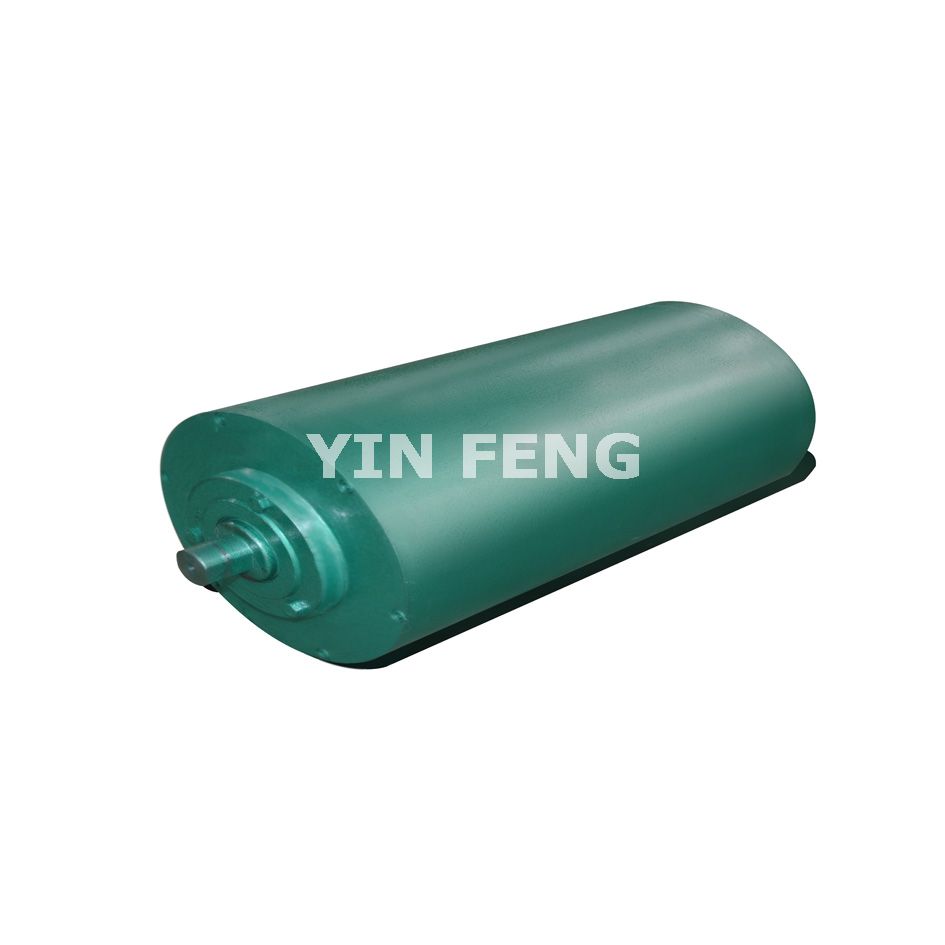

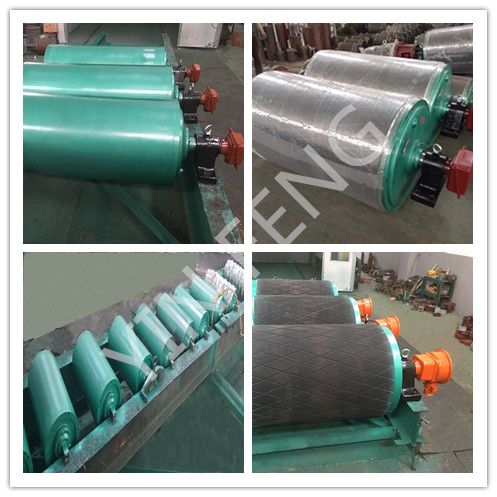

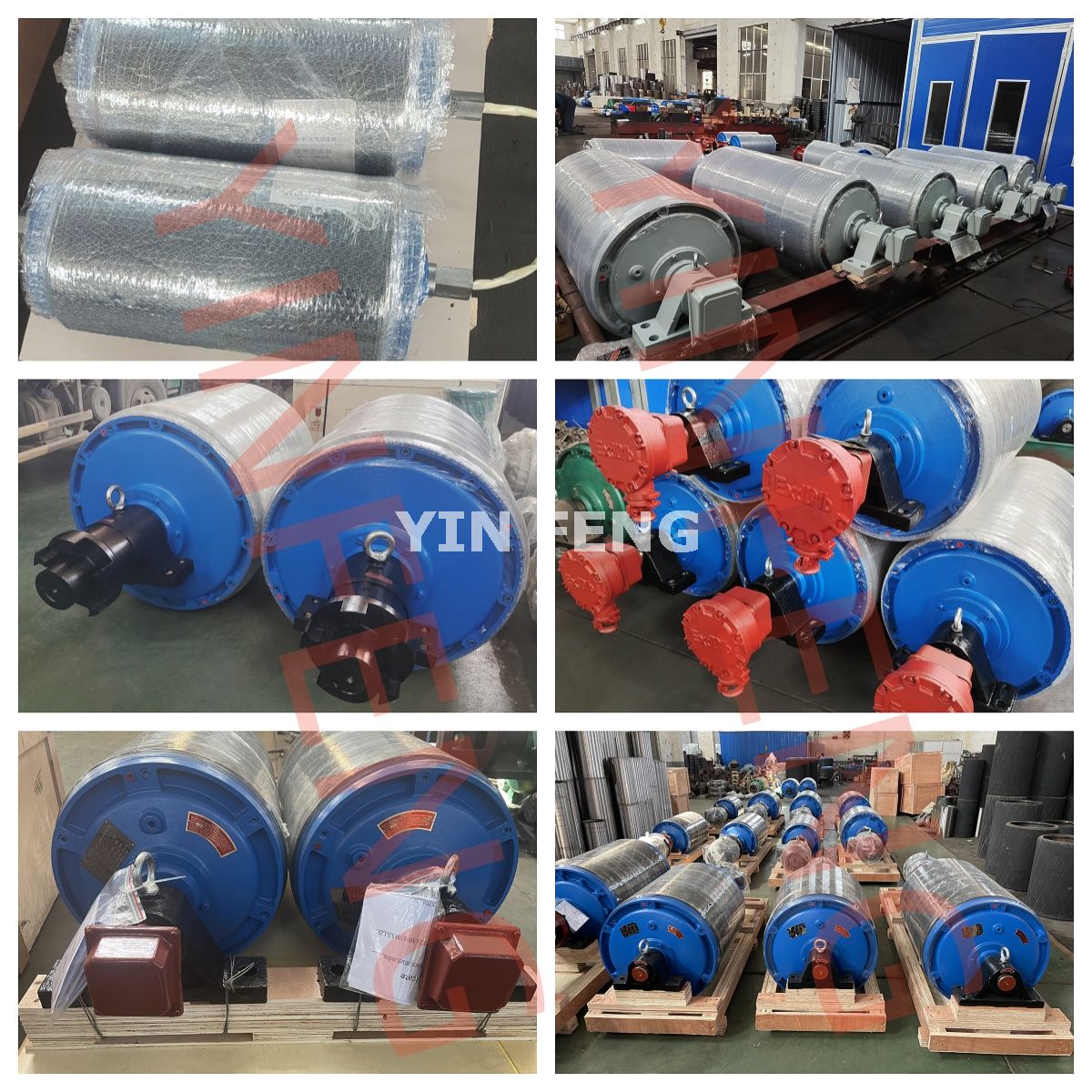

DY1 (JYD)type oil-cooled motorized pulley (motorized drum/drum motor) Photos

DY1 (JYD)Type Oil-cooled Motorized Pulley (Motorized Drum/Drum Motor)

DY1 (JYD)type oil-cooled motorized pulley (motorized drum/drum motor) Packaging

DY1 (JYD)Type Oil-cooled Motorized Pulley (Motorized Drum/Drum Motor)
