YD Type Oil-steeped Motorized Pulley (Motorized Drum/Drum Motor)

    YD type oil-steeped motorized pulley (motorized drum/drum motor) is widely used in food process, postal sorting office, light industry, airport luggage handling, harbors, electrical apparatus lines, etc.


YD type oil-steeped motorized pulley (motorized drum/drum motor) Product Introduction

YD type oil-steeped motorized pulley (motorized drum/drum motor) with polymer gears and planetary structure is strong,reliable and maintenance-free. The drum motor takes up much less space than conventional drives. It has a lot of advantages such as high efficiency,light weight, low noise, long service life, and it is widely used in food process, postal sorting office, light industry, airport luggage handling, harbors, electrical apparatus lines, etc.

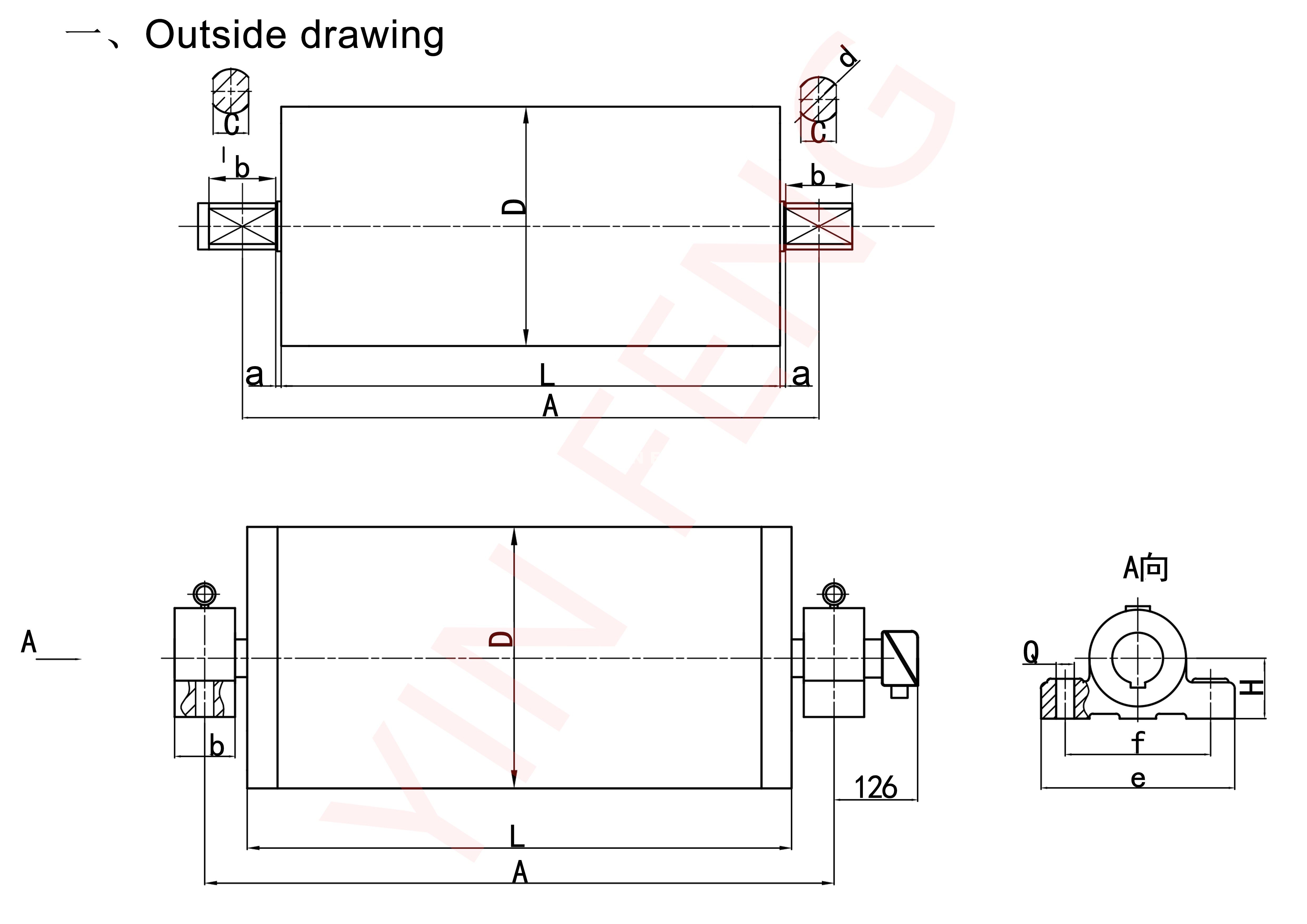

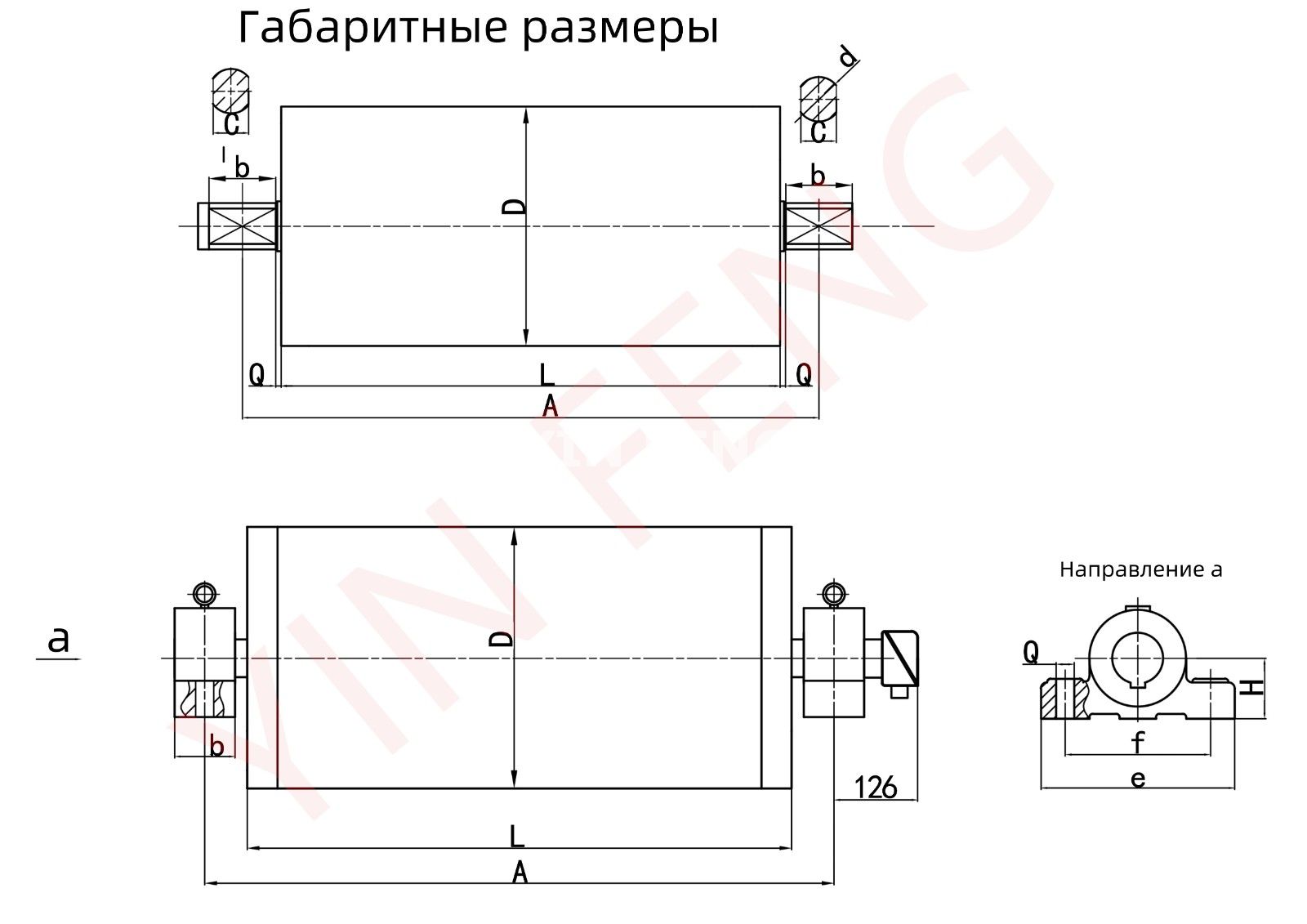

YD type oil-steeped motorized pulley (motorized drum/drum motor) Outside Drawing

YD Type Oil-steeped Motorized Pulleys(Motorized Drum)



YD type oil-steeped motorized pulley (motorized drum/drum motor)

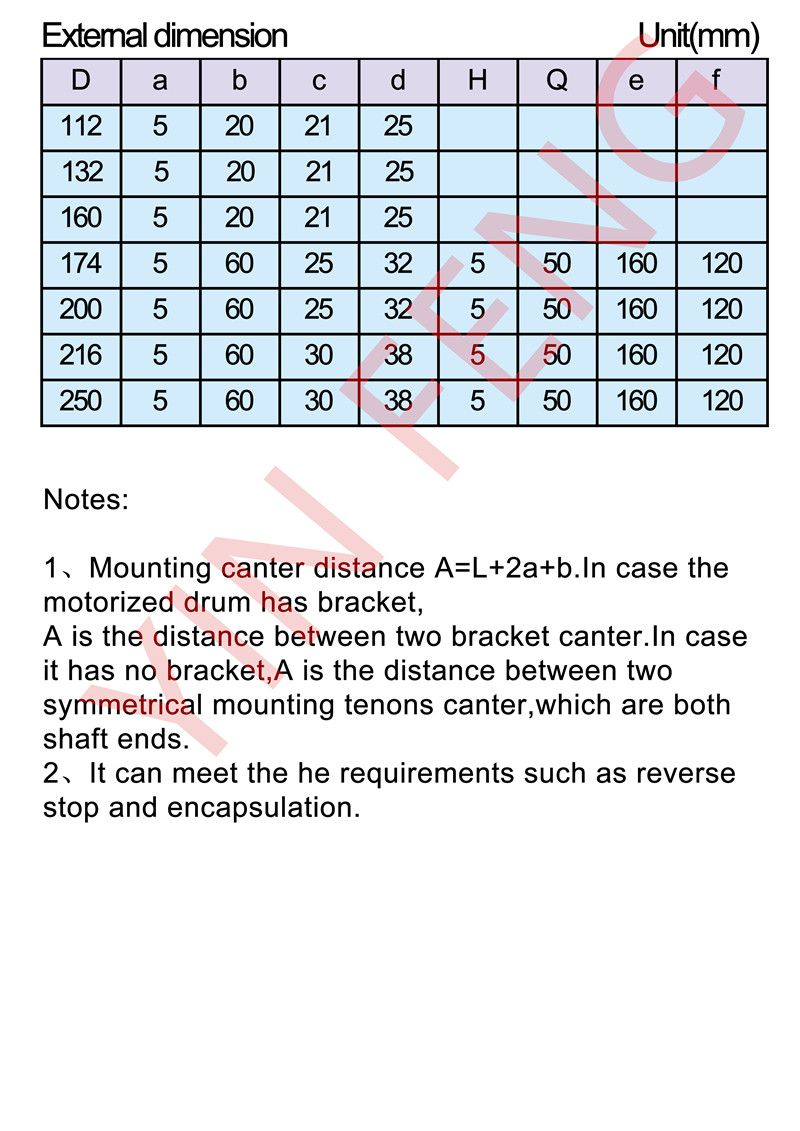

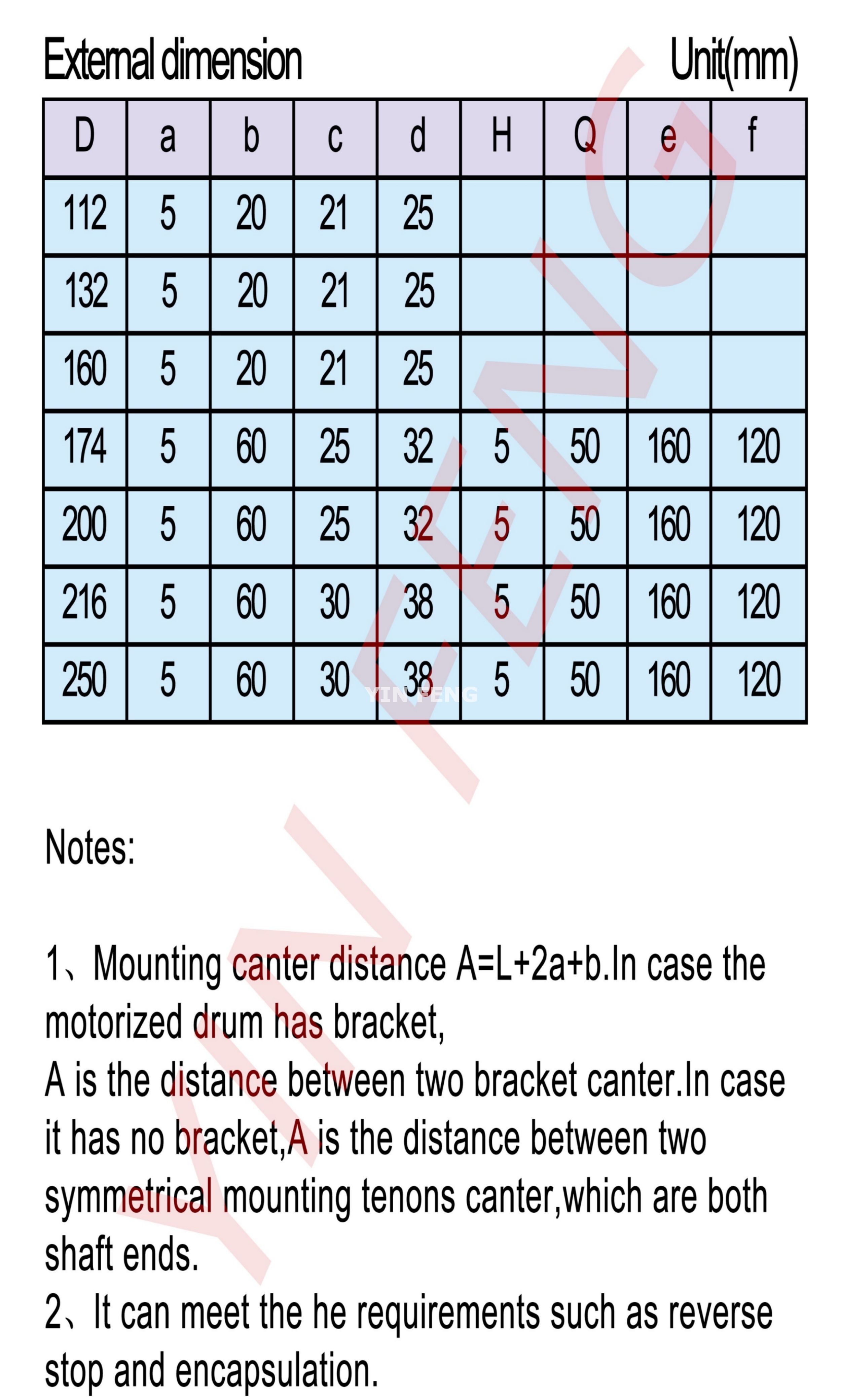

External Dimension                                    Unit(mm)

D

a

b

c

d

H

Q

e

f

112

5

20

21

25





132

5

20

21

25





160

5

20

21

25





174

5

60

25

32

50

15

160

120

200

5

60

25

32

50

15

160

120

216

5

60

30

38

50

15

160

120

250

5

60

30

38

50

15

160

120



Notes:

1Mounting canter distance A=L+2a+b.In case the motorized drum has bracket,

A is the distance between two bracket canter.In case it has no bracket,

A is the distance between two symmetrical mounting tenons canter,

which are both shaft ends.

2It can meet the he requirements such as reverse stop and encapsulation.


YD Type Oil-steeped Motorized Pulleys(Motorized Drum)

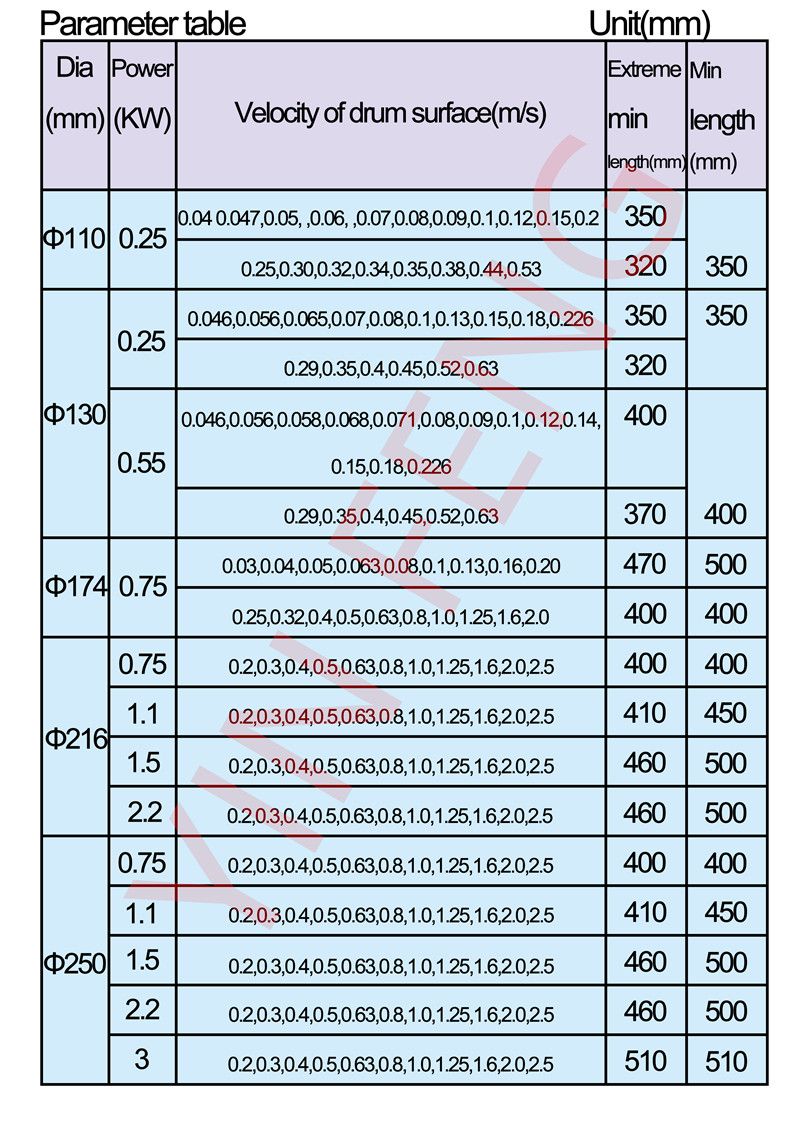

YD type oil-steeped motorized pulley (motorized drum/drum motor) Parameter Table


YD Type Oil-steeped Motorized Pulleys(Motorized Drum)

YD type oil-steeped motorized pulley (motorized drum/drum motor)  Feature

Drum motor shell

Mild steel crowned shell treated with anti-rust oil

Food grade drum motor shell can be supplied in stainless steel-304

Gear transmission

Polymer gears

Structure of planetary gear is adopted

Motor

Common global voltages at 50 Hz or 60 Hz

Motor windings insulation class F

All motors with thermal protection

Oil cooled electrical motor

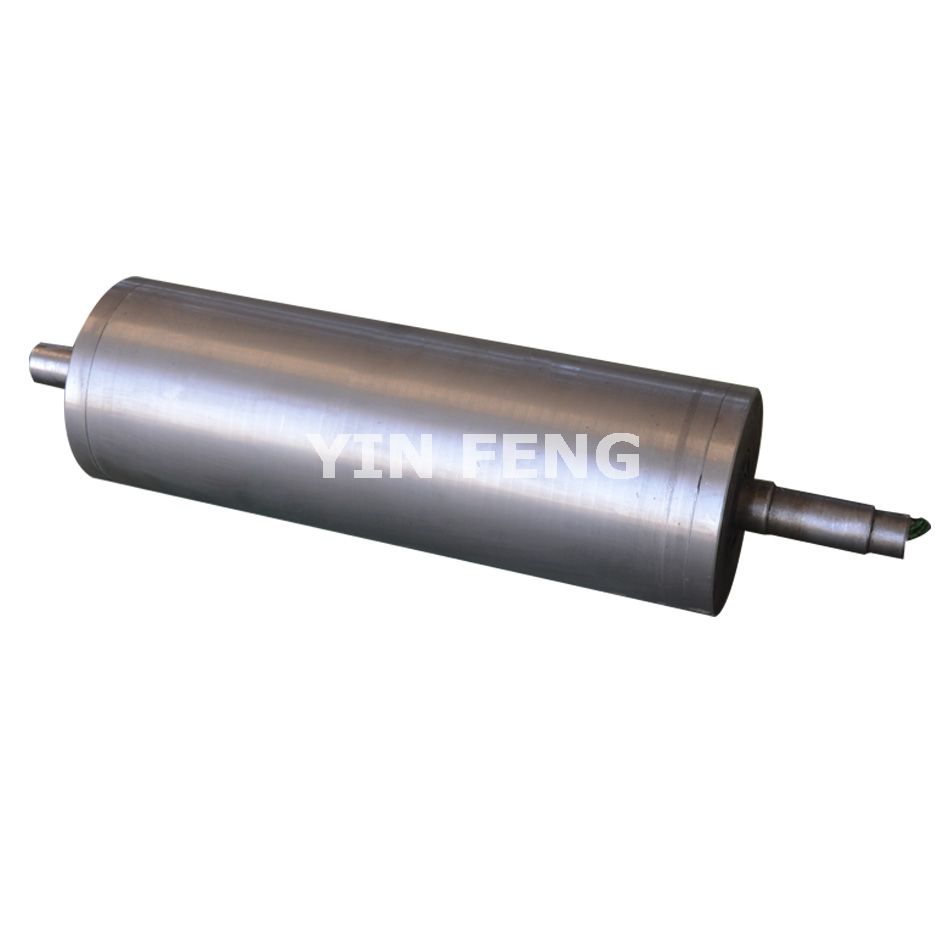

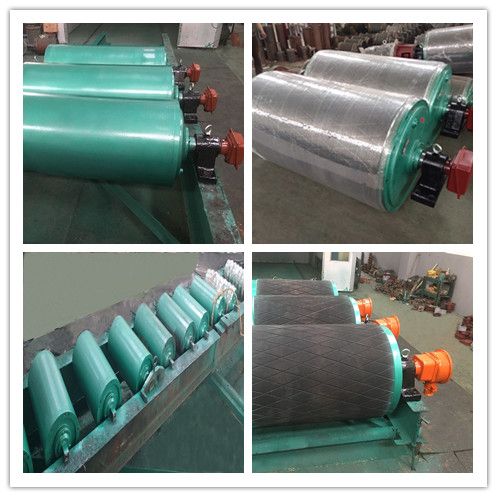

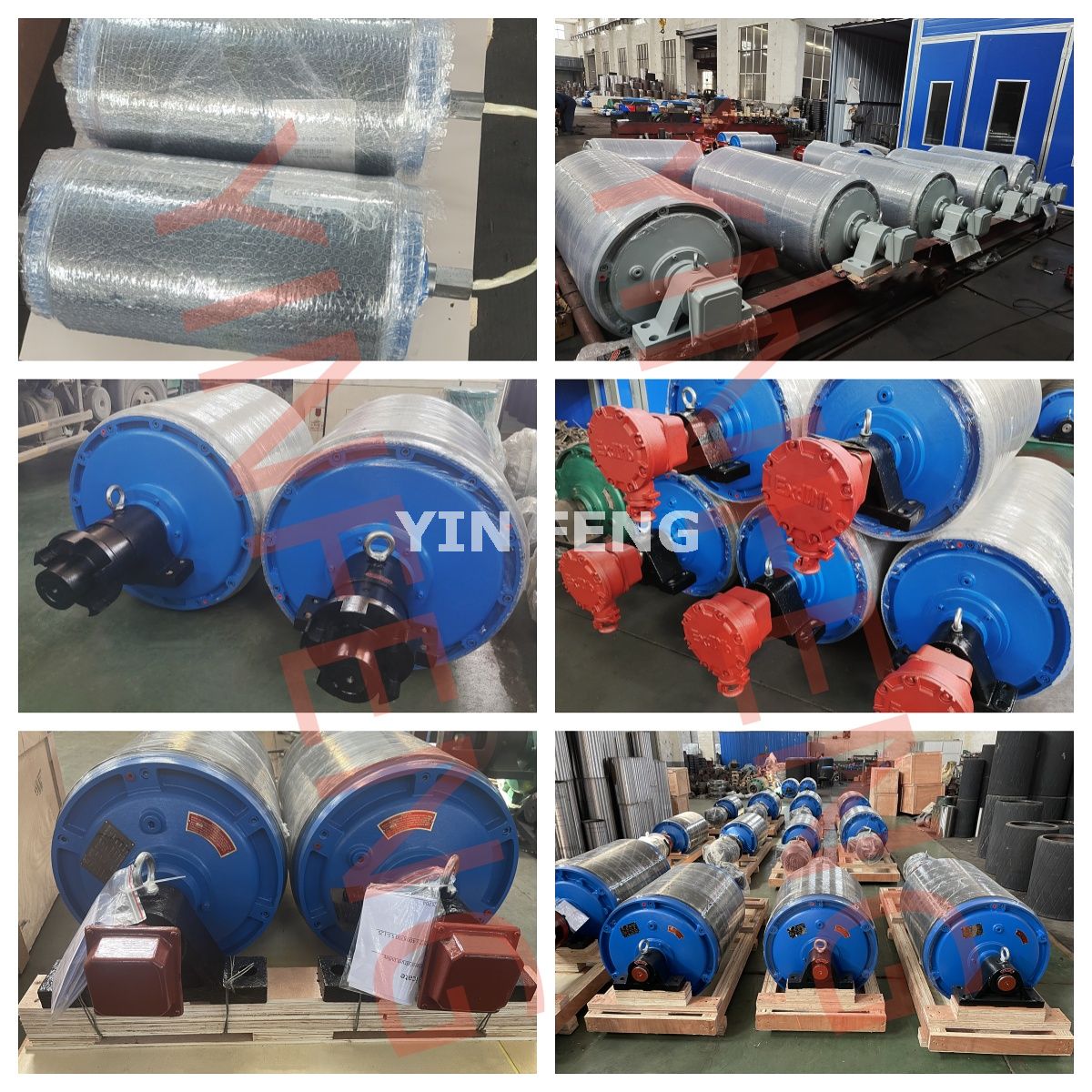

 Motorized Pulley (motorized drum/drum motor) Photos

YD Type Oil-steeped Motorized Pulley (Motorized Drum/Drum Motor)
