TDY75 Type Oil-cooled Motorized Pulley (Motorized Drum/Drum Motor)

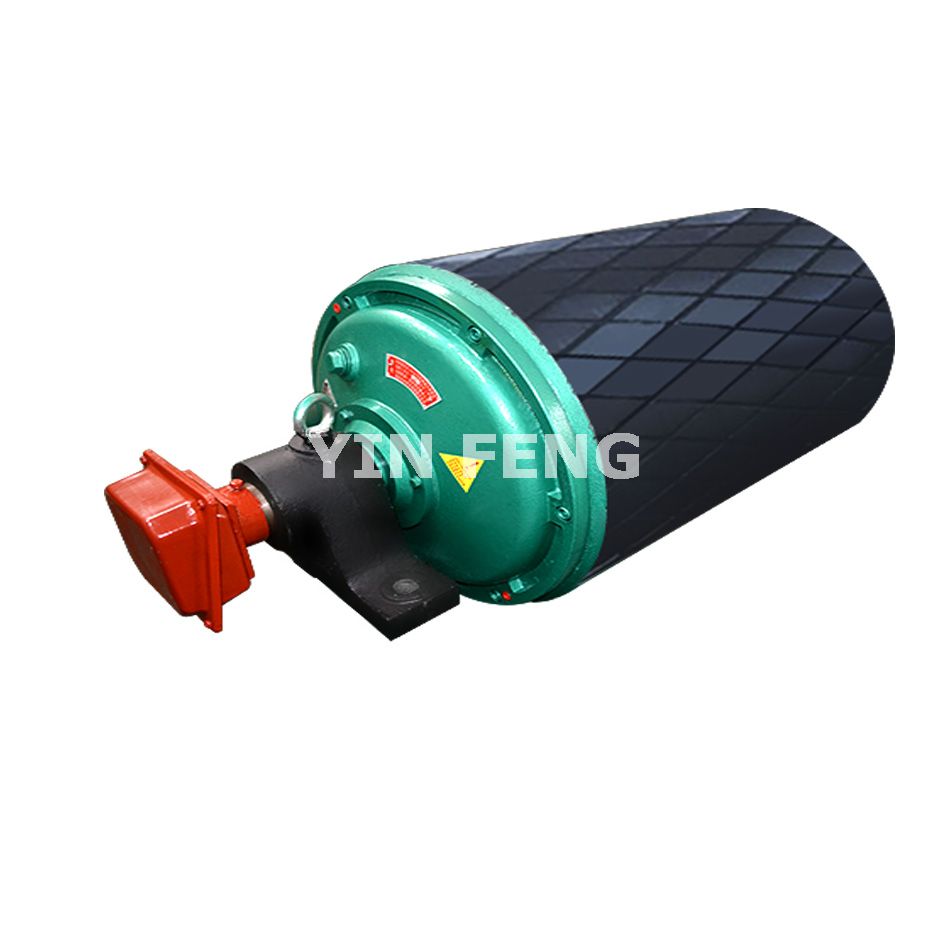

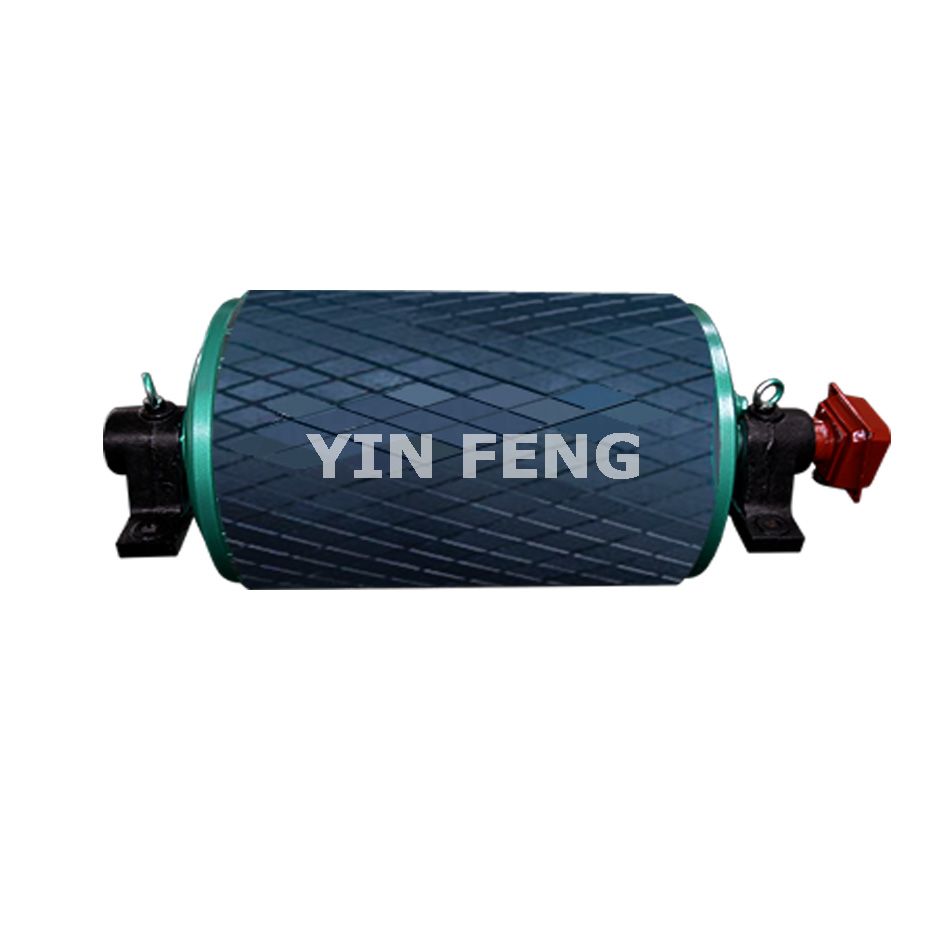

    TDY75 type oil-cooled motorized pulley (motorized drum/drum motor)is the internal driving device for the supportive use of various fixed belt conveyor.

TDY75 type oil-cooled motorized pulley (motorized drum/drum motorProduct Introduction

TDY75 type oil-cooled motorized pulley (motorized drum/drum motor) is the internal driving device for the supportive use of various fixed belt conveyor; compared with external driving device, it carries the characteristics of compact structure, small spatial area, convenient use an maintenance, safe and reliable operation and better leakproofness. It is suitable for the humid and muddy workplace with high dust concentration to meet the requirements such as reverse stop and encapsulation.

As the substitution of extensively applied dynamo—reducer shaped external driving device, it can be used to constitute belt conveyor that not only transports materials in bulk such as coal, mineral, sand, cement and flour, but also conveys articles such as gunny bag and equipment with less energy consumption and easier centralized control.


                                                            Description

Oil-cooled Motorized Pulleys (Motorized Drum)

 Type

motorized with motor

 Power

1.5 2.2 3.0 4.5 5.5 7.5 11 15 18.5 22 KW

 Velocity of pulley surface

0.8 1.0 1.25 1.6 2.0 2.5 m/s

 Pipe / tube/shell

1) Material : Q235 carbon steel

2) Diameter : 500 mm

3) Length:  620mm ~ 1400 mm or as require

4) Thickness: 6mm, 10mm or as require

 Shaft / axis

1) Material:  steel 45

2) Diameter: 45-130mm

  Bearing

big roving crack, deep groove ball with double sealing

 Welding



pipe and bearing housing with automatic welding

 Surface



smooth steel surface, rubber face

 Color



red, green, blue or as require

 Standard



ISO9001:2008 CEMA DIN TUV

 Application



Used in coal mine, steel industry, cement industry and so on

Service life



More than 30,000 hours


TDY75 type oil-cooled motorized pulley (motorized drum/drum motor

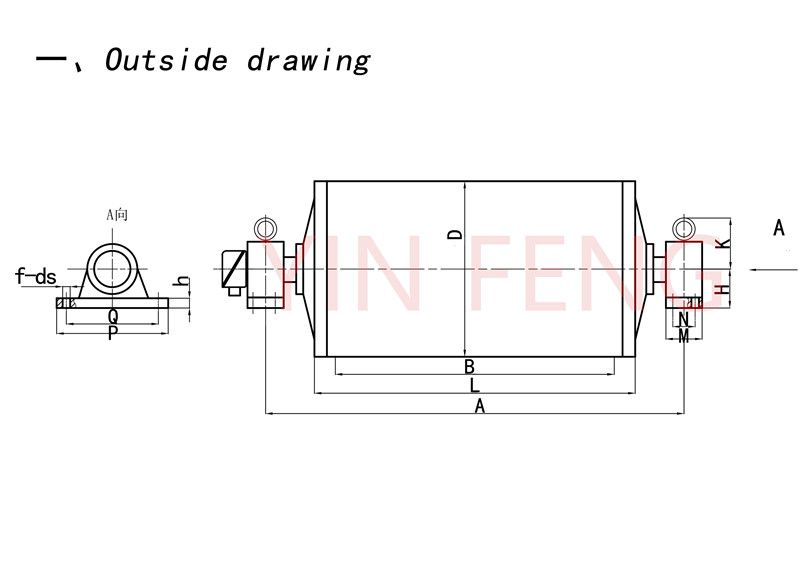

Outside Drawing
TDY75 Type Oil-cooled Motorized Pulleys (Motorized Drum)


TDY75 type oil-cooled motorized pulley (motorized drum/drum motor

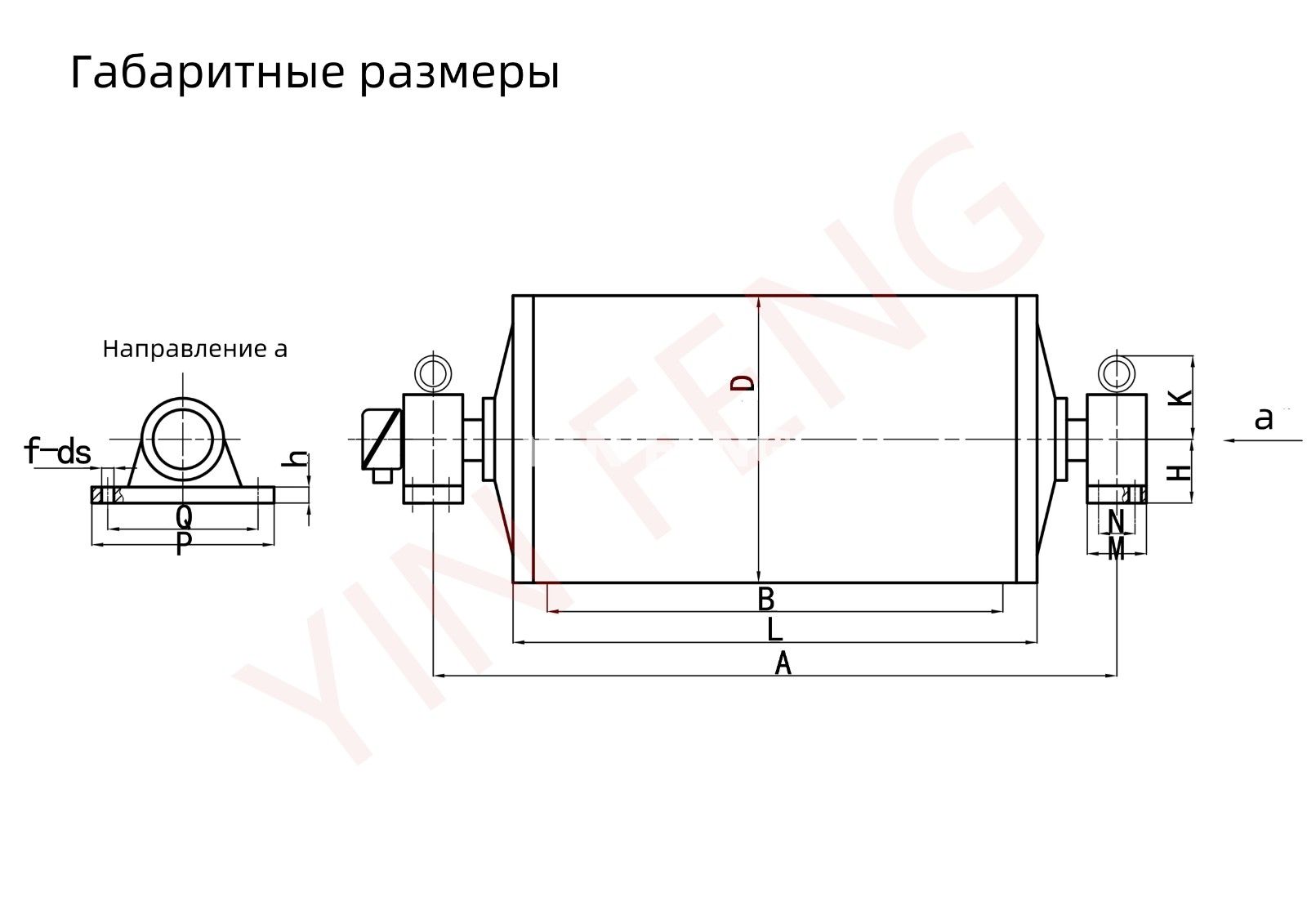

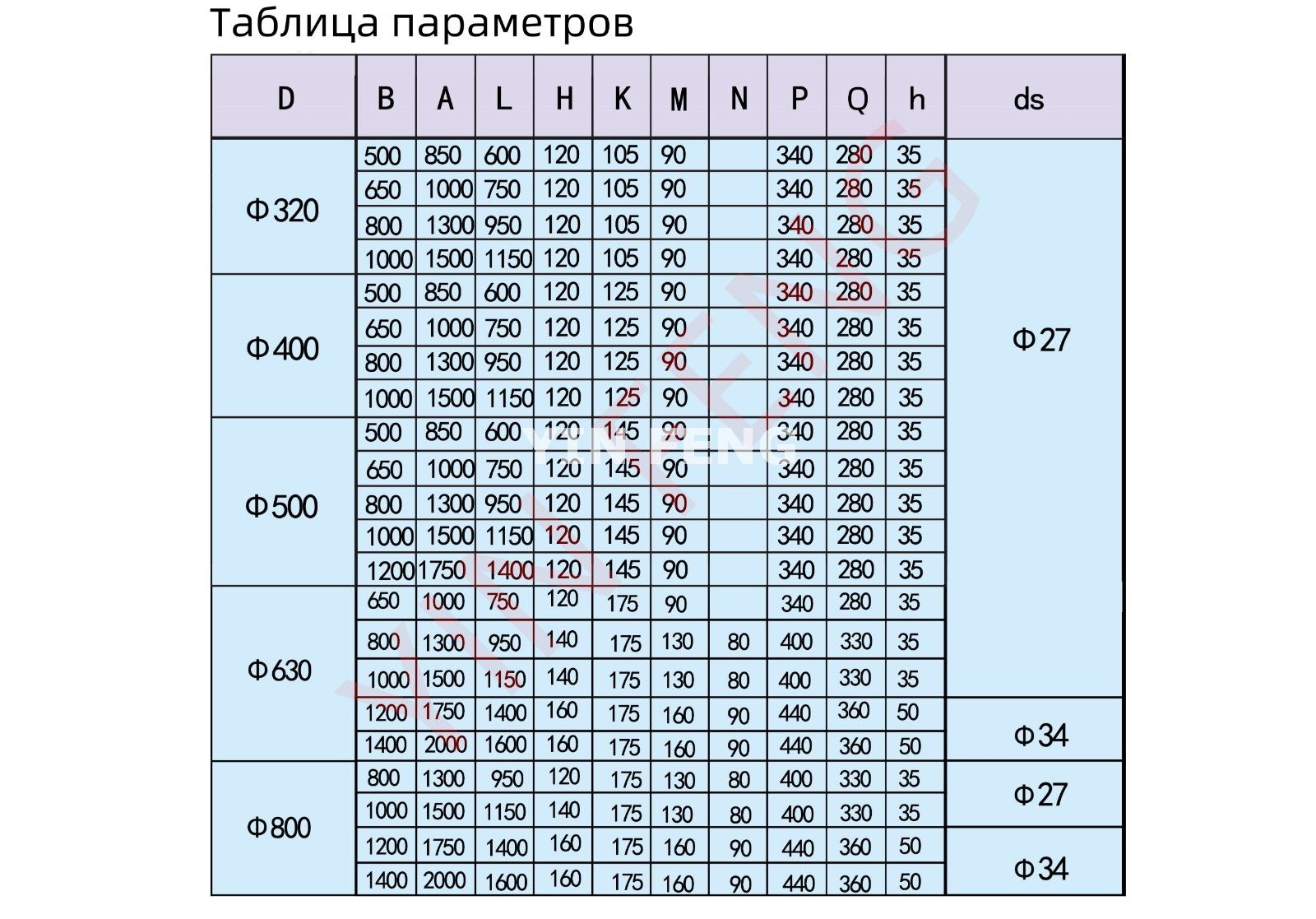

External Dimension


D

B

A

L

H

K

M

N

P

a

h

ds





320

500

850

600

120

105

90


340

280

35



















27

650

1000

750

120

105

90


340

280

35

800

1300

950

120

105

90


340

280

35

1000

1500

1150

120

105

90


340

280

35



400

500

850

600

120

125

90


340

280

35

650

1000

750

120

125

90


340

280

35

800

1300

950

120

125

90


340

280

35

1000

1500

1150

120

125

90


340

280

35







500

500

850

600

120

145

90


340

280

35

650

1000

750

120

145

90


340

280

35

800

1300

950

120

145

90


340

280

35

1000

1500

1150

120

145

90


340

280

35

1200

1750

1400

120

145

90


340

280

35





630

650

1000

750

120

175

90


340

280

35

800

1300

950

120

175

130

80

400

330

35

1000

1500

1150

120

175

130

80

400

330

35

1200

1750

1400

120

175

160

90

440

360

50

34

1400

2000

1600

120

175

160

90

440

360

50



800

800

1300

950

120

175

130

80

400

330

35

27

1000

1500

1150

120

175

130

80

400

330

35

1200

1750

1400

120

175

160

90

440

360

50

34

1400

2000

1600

120

175

160

90

440

360

50



1000

1000

1500

1150

120

175

130

80

400

330

35

27

1200

1750

1400

120

175

160

90

440

360

50

34

1400

2000

1600

120

175

160

90

440

360

50



TDY75 type oil-cooled motorized pulley (motorized drum/drum motor

Parameter Table


Diameter

mm

Power

KW

Blet Width

mm

Velocity   of drum surface(m/s)

0.8

1.0

1.25

1.6

2.0

2.5















320



1.5

500

650

800

1000



2.2

500

650

800

1000



3

500


650


800


1000




4

500


650


800


1000




5.5

500


650


800


1000






















400



1.1

500

650

800

1000



1.5

500

650

800

1000



2.2

500

650

800

1000



3

500

650

800

1000

4

500

650

800

1000



5.5



500

650

800

1000

Diameter

mm

Power

KW

Blet Width

mm

Velocity of drum   surface(m/s)

0.8

1.0

1.25

1.6

2.0

2.5









































500





1.5

500

650

800

1000

1200





2.2

500

650

800

1000

1200





3

500

650

800

1000

1200





4

500

650

800

1000

1200





5.5

500

650

800

1000

1200





7.5

500

650

800

1000

1200





11

500


650


800


1000


1200






15

500



650



800



1000



1200






5.5

800


1000


1200


1400


Diameter

(mm)

Power

(KW)

Blet   Width

(mm)

Velocity   of drum surface(m/s)

0.8

1.0

1.25

1.6

2.0

2.5



















630



7.5

800


1000


1200


1400




11

800


1000


1200


1400




15

800


1000


1200


1400




18.5

800



1000



1200



1400





22

800



1000



1200



1400



















800



7.5

800



1000



1200



1400





11

800



1000



1200



1400





15

800



1000



1200



1400





18.5

800



1000



1200



1400





22

800



1000



1200



1400

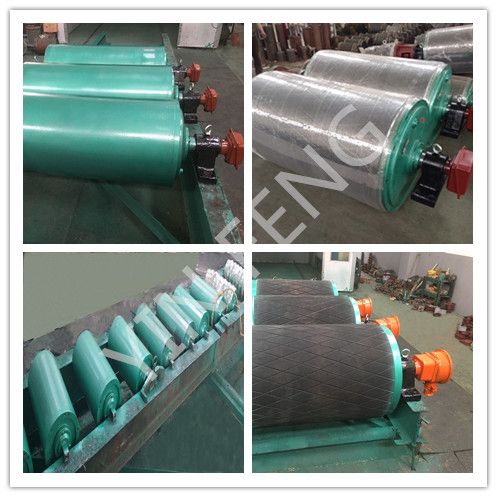

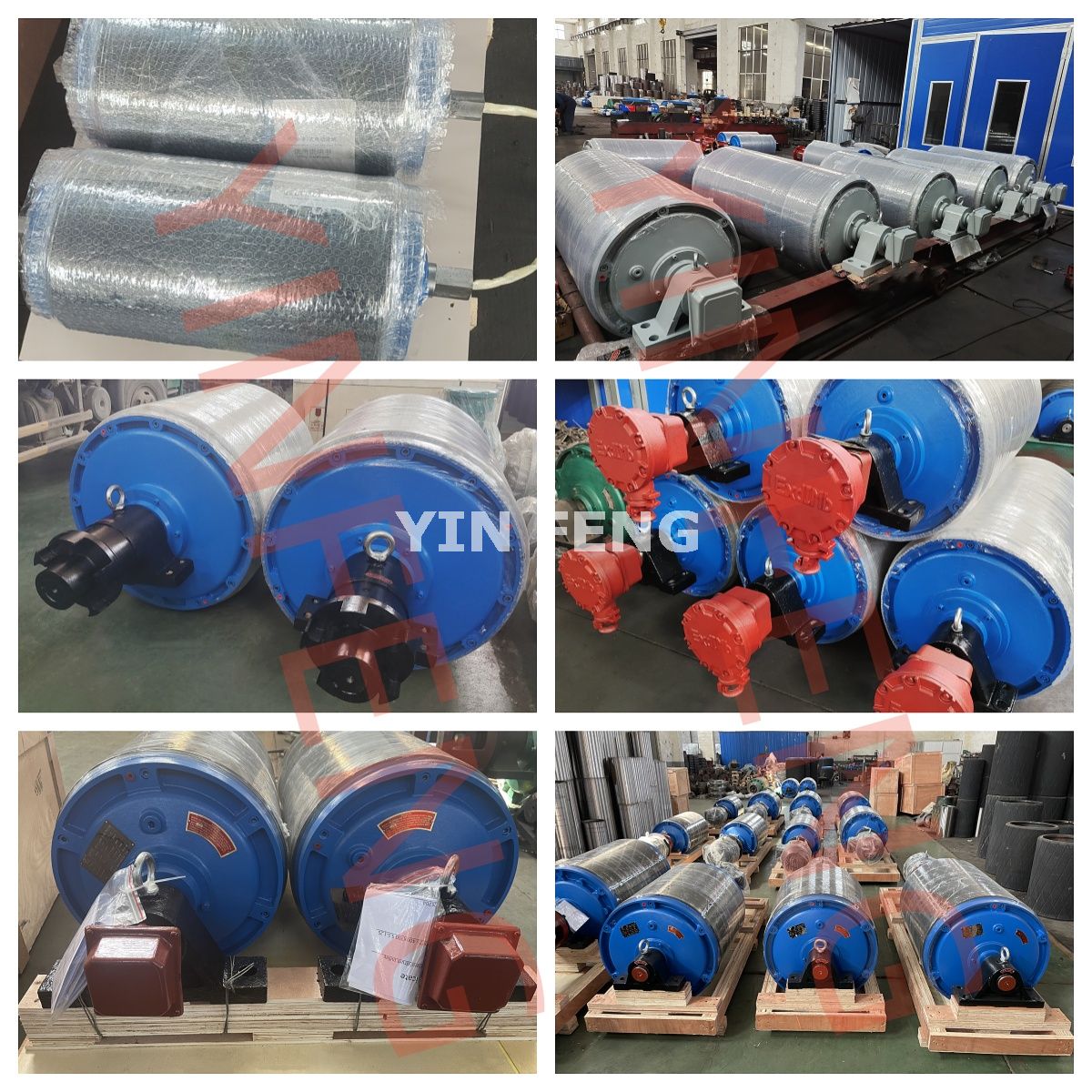

TDY75 type oil-cooled motorized pulley (motorized drum/drum motor) Photos

TDY75 Type Oil-cooled Motorized Pulley (Motorized Drum/Drum Motor)

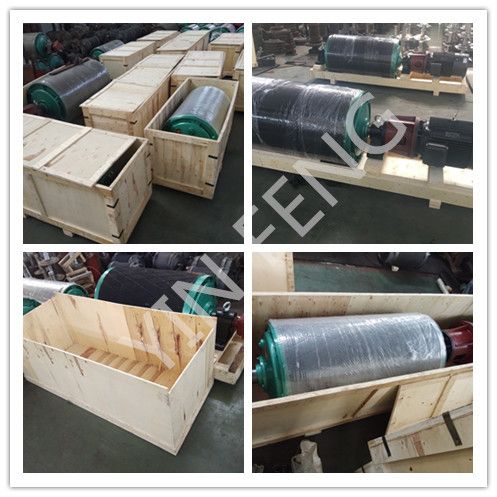

TDY75 type oil-cooled motorized pulley (motorized drum/drum motor) Packaging

TDY75 Type Oil-cooled Motorized Pulley (Motorized Drum/Drum Motor)

TDY75 type oil-cooled motorized pulley (motorized drum/drum motorFAQ

1. Are you manufacturer or trading company?

 We are manufacturer.



2. Where are you located? Is it convenient to visit you?

We are located in Zibo.  Traffic is very convenient.



 3.How can you guarantee quality?

3.1 We have complete working system and procedures and we follow them very strictly.

3.2 We have design and assemble  staffs with rich experiences.

3.3  We produce most of components our self. And easy to control their quality.

3.4.  We will do strict test running after the machine is finished.



 4. Can you design according to our requirement?

Yes. we can. We can manufacturer according to your technical drawing, or we can design according to your requirement. After you confirmed our design. We will start manufacturing.



 5.Can you offer overseas technical support?

Yes. We can. But our quotation is not including this cost. If it is needed, the technical staff's salary/traffic charge/accommodation costs during the technical support should be on your account.



 6. Can I get sample?

Yes, sample orders welcomed



 7. Could I use my own LOGO or design for goods?

Yes, customized logo and design are available



8. What will be the payment term?

T/T, L/C, Western Union, etc., it is flexible


9. May I visit your factory?

Sure, welcome any time, we can also pick you up at airport and station, please let us know.
